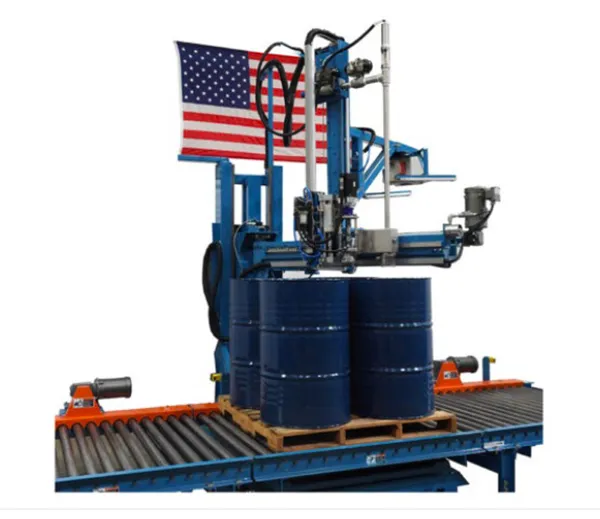

Automatic Palletized Drum Filler
Automatic Palletized Drum Filler
Product Details: Item No. 1294
Model: ADF-5540
Capacity: 4 drums with or without a pallet
Container: 30 to 55-gallon steel, fiber, or poly drums & up to 550 gallon totes
Rate: 4 drums every 5 minutes or 48 drums per hour depending on the viscosity of the liquid
Material: Carbon or stainless steel construction all wetted parts use 316 stainless steel
This patented fully automatic palletized drum filler, model ADF-5540, can fill steel, plastic, or fiber, 55-gallon drums, with or without a pallet. It is designed to find the bung opening, position the lance over the opening, automatically fill to the desired weight, and repeat for all containers on the pallet all without operator intervention. Optionally, it can remove and replace the bungs, and dust caps. The tested fill rate of water is four drums every four to five minutes, which allows for the load driving in and out of the filling station.
- Camera/sensor to locate the bung of each drum
- Filling lance and drip pan assembly
- The lance carriage moves in/out & left/right automatically
- Optional automatic bung removal/ replacement tool
- Optional dust cap placement & crimping
- An option is available to fill IBC/totes with automatic removal and replacement of lids as well.
Operation
This automatic four drum filling machine, model ADF-5540, is a top and sub-surface filler to fill four, 55-gallon drums with or without a pallet.
- A load of four drums is conveyed into the filling station and stops by photo eye.
- A camera/sensor device automatically moves over the load to locate each bung
- A bung removal tool is used to remove the bung from each drum
- Each bung is held until the drum is filled then it’s replaced with the same drum
- The boom and lance carriage move into position to start the fill cycle
- Each drum is automatically tarred to zero weight before filling
- When liquid reaches the lance tip the machine shifts into fast fill cycle
- Near the top, it shifts to slow speed to top of the drum and minimize foaming
- When filled to the designated weight, the lance retracts to his home position
- The bung is automatically replaced onto the filled drum
- The bung removal and filling cycle is repeated for all subsequent empty drums
- When all containers are filled, the load will drive out allowing a new load to enter
- The tested cycle rate, with water, is four drums / five minutes, or 48 drums/hour
This automatic four drum filler, model ADF-5540, is a top and sub-surface filling machine for 55 gallon drums, with or without a pallet.
- Subsurface filling for foaming products
- Lance and all other wetted parts are 316 stainless steel
- Two full-port ball valves control any product hammering
- Scale is 5,000 lb. capacity platform type
- Controller is an Allen Bradley PLC with a 250 product menu
- Touch screen is an Allen Bradley color panel view
- Filler has three-speed filling cycle; slow/fast/shot, if needed
- Fume box for vapor collection with an air operated drip pan & UHMW wiper rings
- Air cylinder raises and lowers the filling lance
- Heavy duty brakes for boom position locking
- NTEP approved scale and weight meter
- NEMA 4 standard enclosure, others optional
- Camera/sensor is used to locate the bung of each drum
- Special, air-operated bung removal/replacement tool
- Air cylinder moves the lance carriage in/out & left/right on an arc
- Air-operated dusts cap placement tool
- Ethernet communications port for interface with Drum Filler In The Cloud
- Will automatically zero the tare weights before each drum fill cycle
- Operator troubleshooting interface with prompts
- Automatic abort if lance is not properly aligned with the bung opening
- The tested cycle rate, with water, is four drums / five minutes, or 48 drums/hour
Specialty Equipment manufactures fillers with welded structural steel stanchions making it the most rugged standard in the industry.
