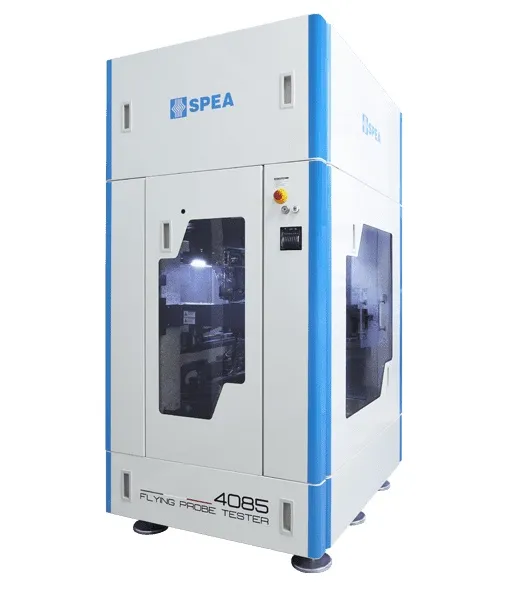

Flying Probe Tester 4085
Flying Probe Tester 4085
4085 is the most performing and yet most compact automatic 8x flying probe tester on the market. Its top throughput – over 800,000 boards tested in a year – makes it suitable for high-volume production test. The high probe positioning accuracy and repeatability, respectively equal to 10μm and 5μm, enable to test high-density boards, with micro-pads smaller than 50μm and SMD 01005 components. Like the ones that characterize latest-generation electronic products: smartphones, tablets, laptops and embedded PCs, routers, wearable devices, flexible circuits, LED strips, sensors, home automation. In addition, the system is designed to be able to contact even more miniaturized components, such as SMD 008004. Furthermore, the unmatched testing capabilities of 4085 are enclosed in an extremely small machine, with a footprint of only 1.29m2.
Full test coverage on 5G devices
The wide range of test techniques available on 4085 automatic tester includes RF Test, also for 5G devices, and Optical Test, through high-resolution cameras with liquid lenses. The same system can also run test programs which integrate techniques such as In-Circuit Test, Short Circuit Test, Open Pin Scan, Power-On Test, Functional Test, Boundary Scan, Flash Programming, Thermal Inspection, Light Chromaticity & Intensity Test. Thus ensuring a full coverage and the detection of every defect on the units under test.
Compact design
4085 systems feature the most advanced flying probe technology within a compact and functional structure. Their performance/dimensions ratio is truly unique: each tester requires only 1.29m² of industrial space, including the integrated conveyor. The units under test can be loaded manually or automatically: the tester’s SMEMA and HERMES interfaces allow for rapid integration into the production lines.
Furthermore, the system can be integrated with SPEA Board Loaders to compose a fully automatic and extremely compact test cell: a 4085 tester combined with a bidirectional Board Loader, for example, occupies less than 2m in length and less than 2.3m² in total area.
