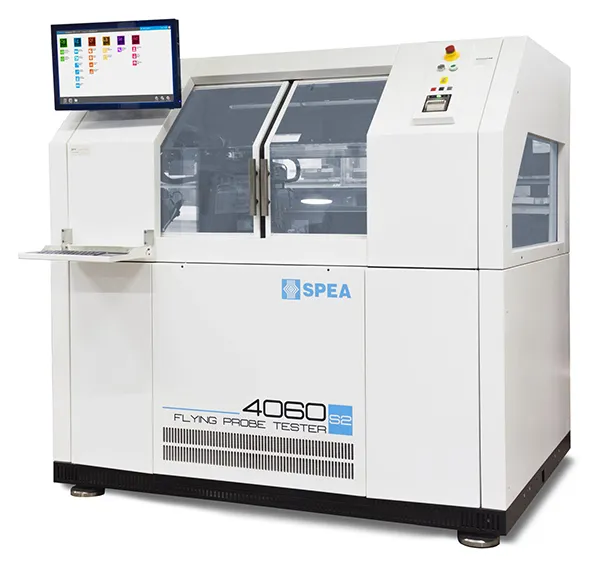

Flying Probe Tester 4060

Flying Probe Tester 4060

Key features

• Dual side probing: full accessibility & parallel test
• Large boards testing: 1000 x 610mm (39.4 x 24’’)
• 20 kg max board weight
• Full test coverage
• Conveyor / Automatic / Manual board loading
• Micro-SMD & flexible circuit probing

Full accessibility & parallel test

DUAL-SIDE FLYING PROBING: Four top-side and two bottom-side moving heads make 4060 S2 able to perform flying probe test on both sides of the board simultaneously, increasing throughput and test capabilities.

BOTTOM MULTI-PROBE FLYING HEADS: In addition to electrical probes for electrical tests, the two bottom multi-probe flying heads can move high-speed power probes, support rods, hi-res cameras, multi-probes, laser & LED probes and electro scan probes, covering the most comprehensive test needs.

MULTI-MODE PROBING: While using the 4 top-side probes to perform flying probe test, a bottom moving platform can be used for bed-of-nails fixtures, multiple high-current power supplies, digital I/O, high-speed signals. The dynamic planarity supports allow you to reliably test large and thin boards, avoiding PCB vibrations due to probe strokes.

Leonardo OS2Easy. Fast. Self-programming.

• Automatic test program generation in minutes
• Automatic test program generation with or without CAD file
• – 50% test program generation time with new S2 System Control
• Faster & fully automatic Debug & Tuning
• Automatic board repair software
• Automatic Pick & Place X-Y file import
• Built-in Self-Test (BIST) compliant
• User-friendly intuitive graphical interface
• Control software to monitor, analyze & optimize the production process
