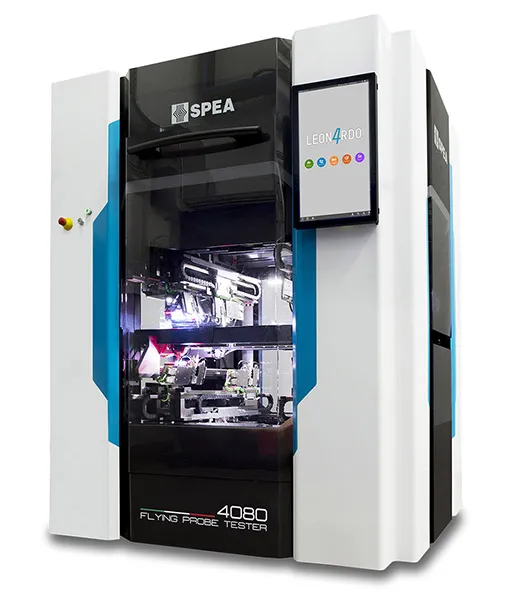

Flying Probe Tester 4080X
Flying Probe Tester 4080X
Automatic test of bigand complex boards
4080X is designed for the fixtureless production test of power electronic boards, including power inverters, power supplies, power drivers, and high-density SMD assemblies.
The system can automatically perform the conveyor handling of large and heavy boards (15kg and even more), then executes the accurate testing of electronic parts (digital, analog, power, running high-voltage test, supercapacitor test, polarity test, relay test) and mechanical parts such as magnets, LEDs and displays.
Moreover, additional operations such as optical inspection, flashing, RTC calibration can be performed on the same equipment used for electronic tests.
Advantages
Testing power boards with 4080X brings important advantages:
- Failure rate at the final functional test (end-of-line test) is close to zero
- Repair costs are greatly reduced by component-level diagnostics: repair engineers don’t need to struggle in finding failure causes
- Early failure detection reduces costs of unnecessary production operations on defective parts
- Functional/EOL test equipment can be simplified, final test time reduced
Up to 28 Top&Bottom Flying Tools
The 8 axes of the 4080X (4 top + 4 bottom) allow you to install up to 28 simultaneous flying test tools, within a range of more than 50 possible ones: in addition to the electrical probes, used to perform all the electrical tests, a variety of test tools are available to expand 4080X’s test capabilities.
