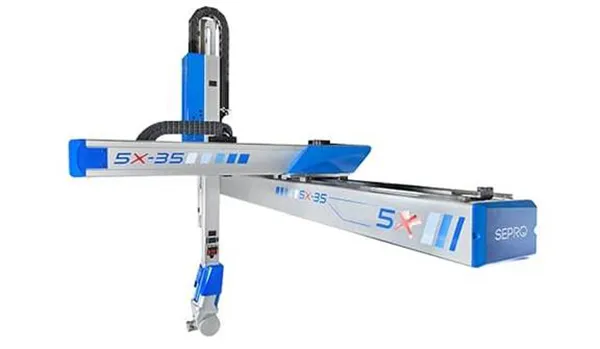

5X LineTruly flexible

5X LineTruly flexible

5X Line robots are designed from latest generation fast and precise Sepro 3-axis Cartesian robots with a Stäubli 2-axis servo wrist. A unique combination that provides a number of solutions for automating injection molding machines. These robots installed on the IMM can be used for unloading and processing parts; they can be located at the end of the IMM to perform post-processing. They can be programmed quickly and efficiently thanks to the power and user friendliness of the Visual 3 control system.

Overview

• Rigid single-piece frame structure
• Prismatic linear guides for high accelerations
• Powerful servomotors and antivibration software
• Path tracking function standard thanks to Visual 3
• Direct or telescopic (except for 5X-15) vertical arm
• Heavy Load Version (Option) on 5X-35 for carrying loads up to 20 kg

Applications

• Complex universal unloading applications for ejected parts
• Post processing of parts
• Simple Pick & Place
• Simple stacking applications
• Complex applications: stacking, advanced palletizing, insert placing, insert molding, vision
• Path tracking
• Applications requiring multiple part orientations in space
• Network communication with peripherals
