Ultra Thin Spring - UTSEB Series

Description

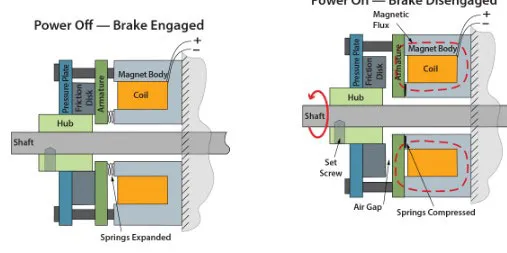

Thinnest profile power-off brake available — provides a very short package size when the brake is mounted to the rear of a motor; and when mounted to the front, there is still room for mounting a pulley. Equipped with PWM controller to reduce heat and save energy for continuous duty applications.

Specifications

• 1.02 to 2.80” diameter ; 0.47 to 0.75” length
• Bore sizes from 0.19 to 0.79”
• Static torque from 0.53 to 28.32 lb-in
• 24VDC coil voltage for 0.5 sec max; 7VDC holding voltage with PWM controller
• Modified designs and customized assemblies available
