SEPAC, Inc.

Friction Disc - SEB Series

Description

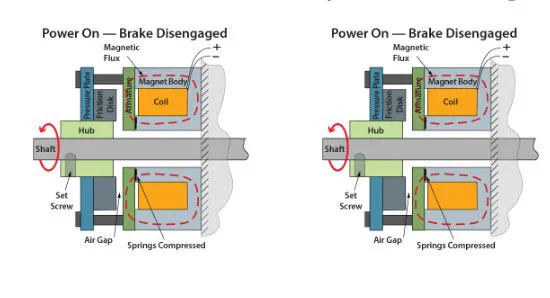

This spring engaged brake is electromagnetically released and can be used either dry or in oil depending on the type of friction material used.

Specifications

• 3.0 to 20.0” diameter; 2.10 to 8.38” length
• Bore sizes from 0.625 to 5.5”
• Static torque from 0.08 to 4330 lb-ft
• Starting torque from 0.04 to 2150 lb-ft
• 24/90/110VDC coil voltage
• Operates both dry and in oil
• Modified designs and customized assemblies available
