Description

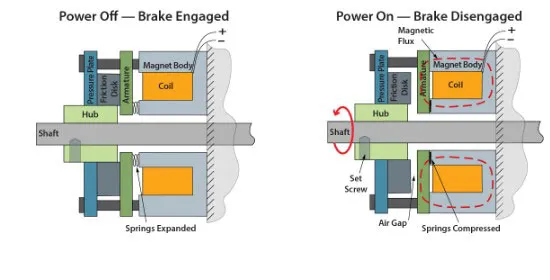

This low-cost manual release power-off brake is designed to operate dry and easily mounts to a motor or frame. The brake includes a manual release lever which provides an override in the absence of power as well and a dust cover to help keep the friction surface free of debris. A torque adjustment collar also allows the torque to be manually adjusted based on the application.
Specifications
3.3 to 11.9” diameter; 1.6 to 4.7” length
Bore sizes from 0.43 to 1.7”
Static torque from 2.95 to 354 lb-ft
Power ratings of 20W to 110W
24VDC coil voltage
Modified designs and customized assemblies available
