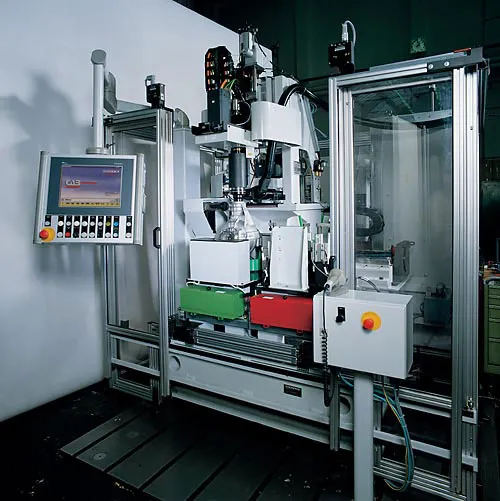

Series SBAL

Series SBAL

Balancing Machines for Axle Drives with Fully Automatic Unbalance Correction

• Fully automatic measuring run
• Force-measuring bearing pedestals
• Fully automatic unbalance correction by drilling into the input flange
• CAB 850 measuring unit
• Simulation of environmental conditions by so-called dummy-balancing

Range of application

• Measurement and correction of the unbalance of front and rear axle drives
• Application of the machine in axle drive production
• Low-speed measurement of unbalance at approx. 1500 min-1
• Unbalance correction by drilling into the axle drive input flanges (welding available as option)

Design

• Machine design optimally adapted to the task. Arrangement of machine assemblies based on ergonomic principles. Available as 1- or 2-station machine.
• Welded machine base of special design. Force-measuring bearing pedestals with auxiliary balancing frame, adapted specifically to the axle drive in hand.
• Pneumatically operated gear clamping mechanisms restrain the axle drive during the balancing process.
• Automatically operating drive unit with active tooling and automatic correction unit. High-performance chip extractor for removing drilling chips in the machine working area.
