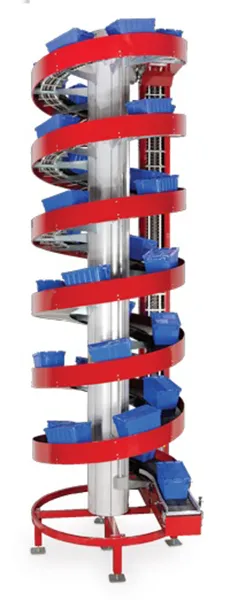

Ryson High Capacity Spiral Conveyors are in response to our customers need to go higher and handle more weight.
The High Capacity Spiral can handle double the capacity of our regular spirals. They ship in one piece which drastically reduce the time and cost of installation. They are ideally suited for warehousing and order picking operations, and can optionally be configured to allow loads to enter or exit at intermediate elevations.
The load capacity is 75 lbs. per linear foot of conveyor for speeds up to 200 FPM. The total weight capacity in the spiral at any one time is 3600 lbs. Only one drive motor is required, resulting in substantial savings in energy, controls and system integration.
Ryson Spiral Conveyors need less floor space than conventional conveyors and are faster and more reliable than any elevator or lift.
Our High Capacity Spirals can also optionally be configured to allow loads to enter and exit the spirals at several intermediate elevations. Special induction and divert conveyors have individually adjustable conveying surfaces to match the spiral pitch, assuring a safe and reliable product transfer. See our Multiple Entry and Exit Spipage for more information.
Ryson Spirals are designed for low maintenance and long life. An innovative modular design allows Ryson to customize with ease and modify in the field to accommodate emerging needs. The High Capacity Spirals are available in powder coated carbon steel, stainless steel, hybrid and freezer versions.
Spiral Conveyor Modular Design
An innovative modular design allows Ryson to customize with ease and modify in the field to accommodate emerging needs. All spirals are made to order and are available in 4 basic configurations ( A, B, C and D), accommodating most requirements relating to the location of the in and out feed tangents. All configurations can operate up or down in a clockwise or counterclockwise rotation.
Custom Configurations
The position and length of the infeed-tangent on up spirals and the outfeed-tangent on down spirals can be customized to meet specific layout requirements. This is possible for all standard configurations. The following depict samples of common customizations:
- Custom Spiral Conveyor Configurations C-EX configuration matches the centerline of the top and bottom conveyor centerlines. Centerline offsets can also be accommodated.
- B-MA is an example of modified in or outfeed angle. The modified angle is normally 45 or 30 degrees, but other angles can be provided.
- A-EX show extended in or outfeed tangents which can be straight or curved and can accommodate centerline off-sets.
