Ryson International, Inc.

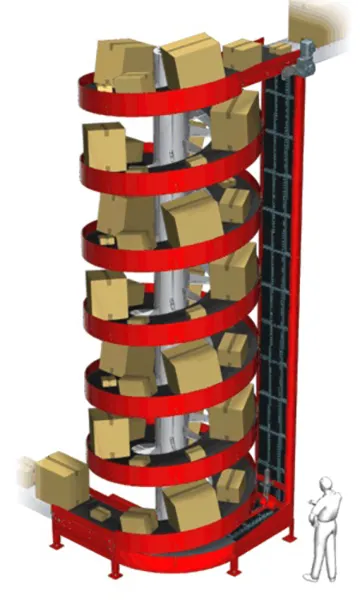

Wide Trak Spiral Conveyor

Wide Trak Spiral Conveyor

The new Ryson Wide Trak Spiral Conveyor is in response to our customers’ need to handle bigger loads and reach higher elevations.

The Wide Trak Spirals can also optionally be configured to allow loads to enter and exit the spirals at several intermediate elevations. New special induction and divert conveyors have individually adjustable conveying surfaces to match the spiral pitch, assuring a safe and reliable product transfer.

Modular Design

Proprietary Slat Belt

This innovative belt enables a low rolling friction operation without any sliding movements or wear strips.  The belt is pulled by a heavy duty steel roller chain and the slats are supported by precision steel roller bearings which ride on a polyurethane surface.  This arrangement effectively takes up the side forces created by a tight radius and at the same time increases the load carrying capacity of the belt up to 75 lbs per linear foot.  This enables the spirals to start and stop fully loaded and can run at speeds up to 200 fpm. The slats are overlapping and provide a reliable and safe conveying surface.The slats can also be furnished with friction inserts when additional grip is required.
