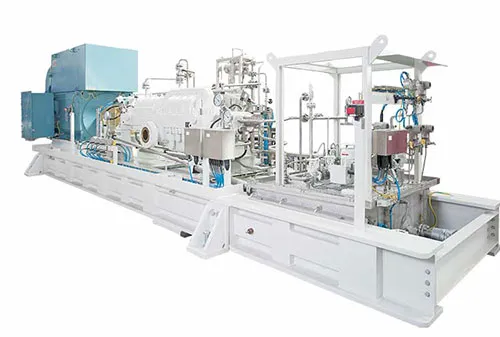

SMI Horizontal Multi Stage Pump

The type SMI is a heavy-duty, horizontal, axial split casing, volute type, multi stage, centrifugal pump according to API 610 (BB3 type) latest edition. Engineered to be robust and reliable, with hydraulic balance obtained by arranging the impellers in opposed groups.

CHARACTERISTICS

• Axially split, horizontal multi-stage centrifugal pump

• Near-centerline mounted

• Double volute casing

• Single suction, closed impeller

• One stage double suction impellers for higher flows

• Thrust compensation by opposed impeller groups

• Side-Side nozzle arrangement

DESIGN FEATURES

• Heavy duty process design according to API 610 latest edition (BB3 type)

• Ring Oil lubrication (other methods available)

• Replaceable wear rings for casing and impeller

• Sleeve/Tilt Pad Bearings design available

• Fan and Water cooling available

CONSTRUCTION MATERIALS

Materials of construction per API 610 (other materials available)
