Ruhrpumpen Group

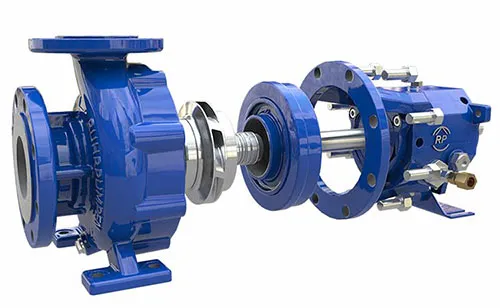

CRP ISO Process Pump

The CRP line features 33 sizes to precisely meet service conditions within a wide range of hydraulic parameters. The line was also designed to accommodate many different optional features such as wear rings on the pressure casing and cooling coils for bearing housings.

CHARACTERISTICS

• Horizontal process centrifugal pump

• Fully in compliance with DIN EN ISO 2858 and 5199

• Single stage horizontal centrifugal pump

• Radially split casing with flanged connections

• Horizontal end suction and vertical discharge on the center line

• Foot mounted

• Enclosed impeller

• Clockwise rotation (viewed from coupling end)

• Oil lubricated

• Casing and casing cover wear ring are replaceable

BENEFITS

• Back pull-out design for ease of maintenance, allows removal of pump assembly without disturbing casing flange connections

• Optimum efficiency

• Various materials of construction available

• Durable mechanical seal

• Compact design

OPTIONS

• Double mechanical seals can be furnished

• Constant Level Oiler

• Cooling Coil available

• Grease and oil mist lubricated bearings

CONSTRUCTION MATERIALS

• Carbon Steel

• Duplex

• Stainless Steel
