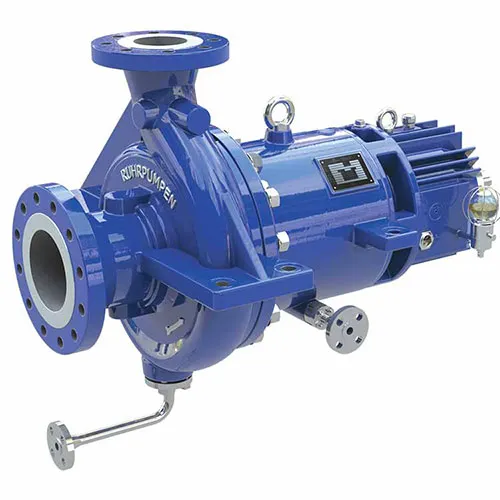

SCE-M Mag-Drive Process Pump

Based on the worldwide proven hydraulic design of the SCE model, the SCE-M is a sealless 100% leakage free pump, avoiding high maintenance costs and usage of mechanical seals. It is the best option for heavy chemical handling applications, in completion to the API 610 pumps for the majority of applications in all refineries and petrochemical plants.

With over 130 hydraulic combinations available for the SCE-M pump, almost all customer requirements are met. Offering three different impellers for each pump size, this enhances performance and optimize efficiencies. Built with the latest engineering techniques and tools such as 3D Modeling and Finite Element Analysis to assure the best product quality.

CHARACTERISTICS

• Horizontal overhung, Single stage

• Radially split

• Centerline mounted casing

• End-Top nozzle arrangement

• Single suction impeller

• Axial thrust balance

CONSTRUCTION MATERIALS

• Materials of construction per API 685 (other materials on request)

DESIGN FEATURES

Heavy-duty process design according to API 685 latest edition

• Ring Oil Lubrication (other methods available)

• Replaceable front and back wear rings for casing and impeller

• Patented Journal Bearing design (made of silicon carbide (SSiC))

• Inducers for low NPSH available

• Ceramic insulation and thermal barrier

• 100% leakage free containment shell, self vented and fully drainable

BENEFITS

• Environmentally friendly - Zero fugitive emissions to the atmosphere

• Directly interchangeable with other dimensional standard pumps

• Maximum bearing life given that there are no bearing alignment problems

• Cost savings through optimum efficiency
