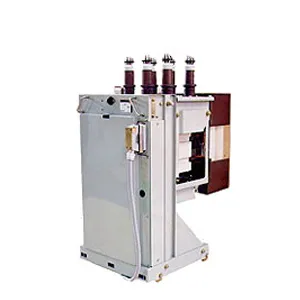

Load Break Switch

LMLBS panel

Load Break Switch Panels have the main switching device, the Load Break Switch, fixed in the metal-clad Enclosure.

• The Load Break Switch is operated from the front of the panel and is interlocked with the Earthswitch.

• The panel has a Control Cubicle in which the low voltage relays and instruments, related to the circuit, are fitted.

• The busbar chamber is segregated and aligns with the busbar chambers of the rest of the switchboard.

Power connections are made on Droppers at the rear of the panel, which is accessed through removable Covers. Current Transformers are normally mounted in this section of the panel.
