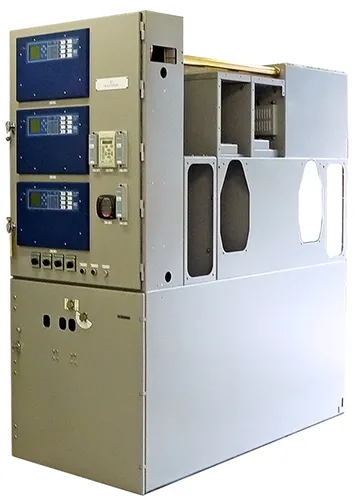

Double Busbar Panel

LMVP 12kV double busbar panel

The fixed metal-clad Enclosure comprises:

• A Control Cubicle in which the low voltage relays and instruments are fitted.

• Two busbar chambers segregated from each other and running the length of the switchboard. Each chamber supports one three-phase set of insulated high conductivity Copper busbars.

• A Current Transformer chamber from where the Measurement and Protection devices get their inputs.

• A Cable Box from which Power Cables are connected to the Transformer in the case of Incomers and Loads in the case of Feeders.

• A Voltage Transformer and its Housing may be incorporated so as to engage with the Circuit (Cable) or Busbars.

• A Circuit Breaker chamber into which the withdrawable part engages.

The withdrawable Carriage normally carries a Vacuum Circuit Breaker. The Circuit Breaker is vertically raised/lowered to engage/dis-engage with the main busbars. The unit can be placed in either the FRONT BUSBAR or the REAR BUSBAR position. The Carriage is horizontally drawn-out or rolled-into the compartment.
