ScanMaster 63 Induction Scanner
ScanMaster 63 Induction Scanner

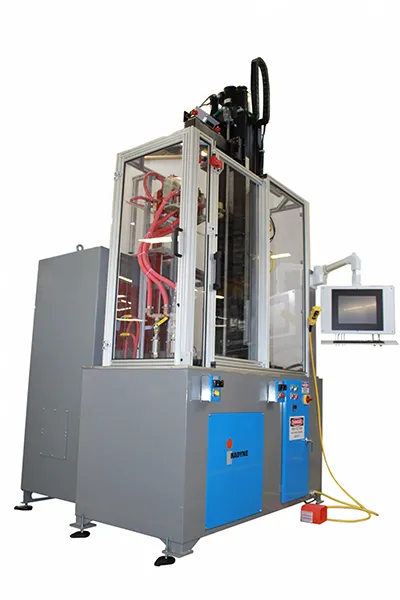

The ScanMaster® 63 induction scanner is designed to accommodate parts up to 63 inches in length. It includes the scanner assembly, a power supply, inductors, standard guarding with safety light curtains, ScanMaster® controls, and a configurable water/quench cooling system.
ScanMaster® induction scanner components can be incorporated together or separately to meet specific needs and can be easily adapted for use with external material handling units, such as a pick-and-place, linear transfer, clamp transfer, and more.
Our user-friendly control system simultaneously controls scan speeds (0-6 in. [152.4 mm] per second), rotation speeds (0-175 rpm), heat levels, heat times, quench times, quench temperature, time delays, and six additional user custom digital outputs.
FEATURES
- Dual or Triple Spindles
- Built-in quench tank
- Movable Upper Center Spindle for quick and easy changeovers
- The self-contained system is easily integrated into your work cell
- Different power ratings and frequency ranges are available for application-matched precision hardening
- User-friendly controls simplify set-up, changeover, and diagnostics
- Flexible workpiece capacity
- Simple utility connection for fast, low-cost installation
- Optional QAS 2000 Monitoring and Alerting System which provides process monitoring and traceability for each part processed
TECH SPECS
|
|
SCANMASTER® 63
|
|
Scan Length
|
63 in. [160 cm]
|
|
Spindles
|
Dual or Triple Spindle
|
|
Spindle Spacing
|
6 in. [152 mm]
|
|
Rotation Speed
|
0-175 RPM
|
|
Maximum Payload
|
500 lbs.
|
|
Single Part Diameter
|
20 in. [508 mm]
|
|
Dual Part Diameter
|
8 in. [203 mm]
|
|
Dimensions
|
82W x 76D x 143H in.
[208W x 193D x 363H cm]
(170H in. [431 cm] Fully Raised)
|
|
Operator Interface
|
Touchscreen Controls Package
|
|
Quench Tank
|
200 gal./50 GPM
[757 L/189 LPM]
300 gal./100 GPM
[1135 L/378 LPM]
|
|
Quench @ 50% Duty Cycle
|
200 kW/400 kW
|
ACCESSORIES
- Quick Disconnect – Quick change tooling for coil mounting
- Robotics and Material Handling Integration, i.e. integrated bowl feeders, rotary tables, step feeders, conveyors, or 6 axis robotic arm
- QAS 2000 Quality Assurance System
- Pyrometer Sensor
- Chillers
- Automatic/Semi-automatic part handling modules
