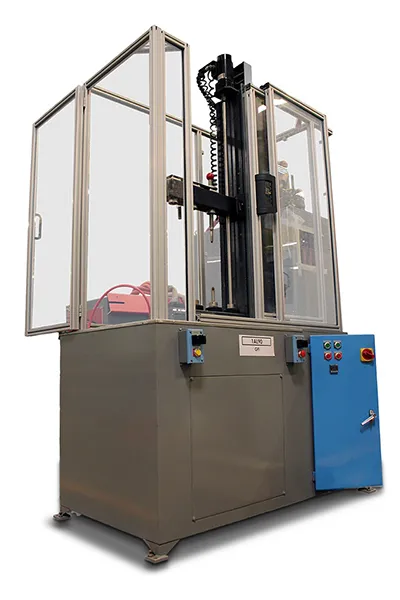

ScanMaster 44 Induction Scanner
ScanMaster 44 Induction Scanner
The ScanMaster® 44 induction scanner is designed to accommodate parts up to 44 inches in length. It includes the scanner assembly, a power supply, inductors, standard guarding with safety light curtains, ScanMaster® controls and a configurable water/quench cooling system.
ScanMaster® induction scanner components can be incorporated together or separately to meet specific needs, and can be easily adapted for use with external material handling units, such as a pick-and-place, linear transfer, clamp transfer and more.
Our user friendly control system simultaneously controls scan speeds (0-6 in. [152.4 mm] per second), rotation speeds (0-175 rpm), heat levels, heat times, quench times, quench temperature, time delays, and six additional user custom digital outputs.
FEATURES
- Triple Spindles
- Built-in quench tank
- Movable Upper Center Spindle for quick and easy changeovers
- The self-contained system is easily integrated into your production line
- Different power ratings and frequency ranges are available for application-matched precision hardening
- User-friendly controls simplify set-up, changeover, and diagnostics
- Flexible workpiece capacity
- Simple utility connection for fast, low-cost installation
- Optional Radyne QAS Monitoring and Alerting System which provides process monitoring and traceability for each part processed
SPECS
|
SCANMASTER® 44
|
Scan Length
|
44 in. [111 cm]
|
Spindles
|
Triple Spindles
|
Spindle Spacing
|
6 in. [152 mm]
|
Rotation Speed
|
0-175 RPM
|
Maximum Payload
|
500 lbs.
|
Single Part Diameter
|
20 in. [508 mm]
|
Dual Part Diameter
|
8 in. [203 mm]
|
Dimensions
|
77W x 38D x 116H in.
[195W x 97D x 294H cm]
(150H in. [391 cm] Fully Raised)
|
Operator Interface
|
Touchscreen Controls Package
|
Quench Tank
|
200 gal./50 GPM
[757 L/189 LPM]
300 gal./100 GPM
[1135 L/378 LPM]
|
Quench @ 50% Duty Cycle
|
200 kW/400 kW
|
ACCESSORIES
- Quick Disconnect – Quick change tooling for coil mounting
- Robotics and Material Handling Integration, i.e. integrated bowl feeders, rotary tables, step feeders, conveyors, or 6 axes robotic arm
- Radyne QAS Quality Assurance System
- Pyrometer Sensor
- Chillers
- Automatic/Semi-automatic part handling modules
