Proteus Industries Inc

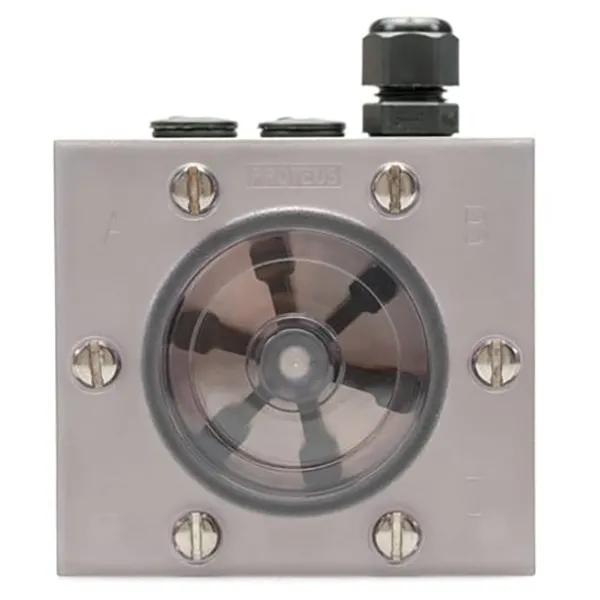

8000 Series Liquid Flow Meters

8000 Series Liquid Flow Meters

• Flow ranges from 0.2 to 227 LPM / 0.05 to 60.0 GPM
• Accuracy of 3% of flow range
• Liquid temperatures from -40 to 90°C for standard models – customized versions to 150°C and above!
• Enhanced accuracy and stability from digital signal processing
• AutoAlarm™ automatic alarm trip point setting feature
• 0–5 VDC or 0–10 VDC and 4–20 mA outputs
• Standard NEMA 4X / IP66 enclosure
• Customization available for OEMs
• 5-year warranty

Description

Proteus 8000 Series instruments provide accurate, rugged, reliable and cost-effective measurement of heat transfer fluids and other liquids from -40 to 90 °C. Customized versions can be adapted for use with liquid temperatures to 150 °C and above. A built-in relay can be used to sound an alarm or shut down a system before damage is done to valuable equipment and products.
