Proteus Industries Inc

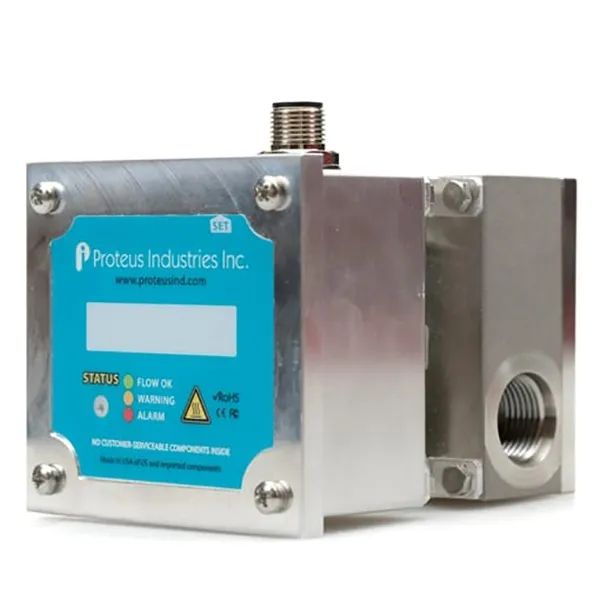

8000XHT Series

8000XHT Series

Extreme-Temperature Liquid Flow Meters

• Standard fluid temperatures from -40 to 200 °C (-40 to 392 °F); customized versions from -60 to 160 °C (-76 to 320 °F).
• Magnetic-, EMI-, and vibration-resistant stainless steel construction
• Flow ranges from 0.95 to 60 LPM (0.25 to 16 GPM)
• Optional temperature measurement capability with Pt1000 RTD sensor
• Specialized calibration to account for viscosity effects of fluid and operating temperature
• Compatible with many advanced heat-transfer fluids
• Standard NEMA 4X / IP66 enclosure ensures reliable performance in wet environments
• Customization available for OEMs
• 5-year warranty

Description

 Extreme High-/Low-Temperature 8000XHT Series flow meters provide accurate, reliable, and cost-effective measurement of heat transfer fluids and other liquids from -60 °C to 200 °C.

The high-temperature capability is enhanced by Proteus’ world-class calibration expertise, to deliver superior precision and reliability in flow and temperature measurement for critical heat-sensitive
