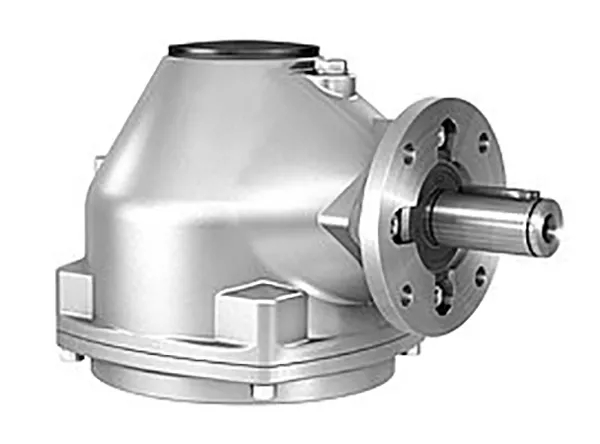

Bevel gearboxes GK

Bevel gearboxes GK

GK bevel gearboxes will be used if the operating direction is to be displaced by 90°.

Thus, the output torque can be increased many times.

Design features

• Bevel gearboxes for torques up to 16,000 Nm
• Low-noise and smooth operation with face-hobbed Palloid® gears
• Lifetime according to EN 15714-2 Valve attachment according to EN ISO 5210
• Suitable for manual and electrical operation

 Ambient conditions

• Suitable for ambient temperatures –40°C to +80°C
• Top quality corrosion protection with AUMA powder coating
• Stainless steel input shaft
• IP68

Options

• Square for input shaft (adapter)
• With stem nut for use as screw jack
• Stem protection tube Position and end position signalling during manual operation
• ATEX approval
• High and low temperature version
• Functional safety: Up to SIL 2 in selected configurations
