Polytron Devices

1 to 2 Watt Single and Dual Output

1 to 2 Watt Single and Dual Output

Low cost single-inline package

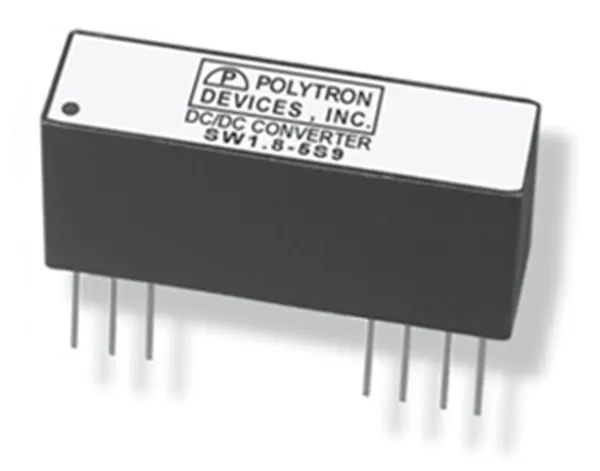

Our low cost 1-2 watt single and dual output DC-DC converter has tight regulation and a miniature single-inline package.

INPUT

Input Voltages: Voltage Range 10%

• 5 Vdc: 4.5 - 5.5 Vdc
• 12 Vdc: 10.8 - 13.2 Vdc
• 24 Vdc: 21.6 - 26.4 Vdc

OUTPUT

• Voltage Stability: 0.5% max.
• Voltage Accuracy: 5%
• Line Regulation: 1% max.
• Load Regulation: 1% max.
• Ripple Noise (20MHz Bw): 0.5 - 1% P-P max.

GENERAL

• Efficiency: 55% min.
• Isolation Voltage: 500 Vdc

ENVIRONMENTAL

• Operating Temperature Range: -25 to 71°C
• Storage Temperature Range: -55 to 105°C
• Cooling: Free Air Convection

PHYSICAL

• Case Material: Non-Conductive Black Plastic
• Dimensions: 1.25” x 0.34” x 0.57” (31.8 x 8.63 x 14.5 mm)
