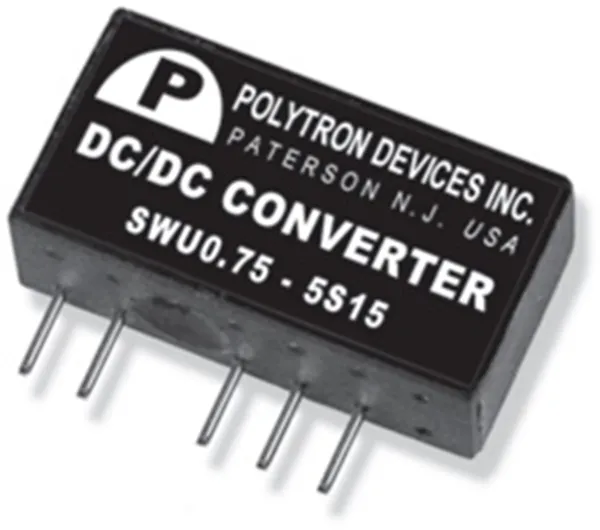

0.75 Watt Single and Dual Output

0.75 Watt Single and Dual Output

Compact and efficient design

Our low cost 0.75 watt single and dual output DC-DC converter is highly efficient with 500 Vdc input/output isolation and a miniature single-inline package.

INPUT

• 5 Vdc: 4.5 - 5.5 Vdc
• 12 Vdc: 10.8 - 13.2 Vdc
• 15 Vdc: 13.5 - 16.5 Vdc
• 24 Vdc: 21.6 - 26.4 Vdc

OUTPUT

• Voltage Accuracy: ±5%
• Line Regulation: -1 or 1% of Vin
• Load Regulation: 10% for 5V, 3% for all other models
• Ripple Noise of 20MHz Bw: 50 mVp-p
• Temperature Coefficient: 0.1%/°C
• Short Circuit Protection: 1 sec. max
• Noise: 75mVp-p max, 50 mVrms max

GENERAL

• Efficiency: 70 - 80%
• Isolation Voltage: 750 Vdc
• Isolation Resistance: 1000 MOhms
• Switching Frequency: 100 KHz

ENVIRONMENTAL

• Operating Temperature Range: -25 to 71°C
• Storage Temperature Range: -55 to 105°C
• Cooling: Free Air Convection

PHYSICAL

• Case Material: Non-Conductive Black Plastic
• Dimensions: 0.77” x 0.24” x 0.40” (19.6 x 6.10 x 10.20 mm)
