0.5 to 1 Watt Single Output

0.5 to 1 Watt Single Output

DC-DC converters with internal SMD construction

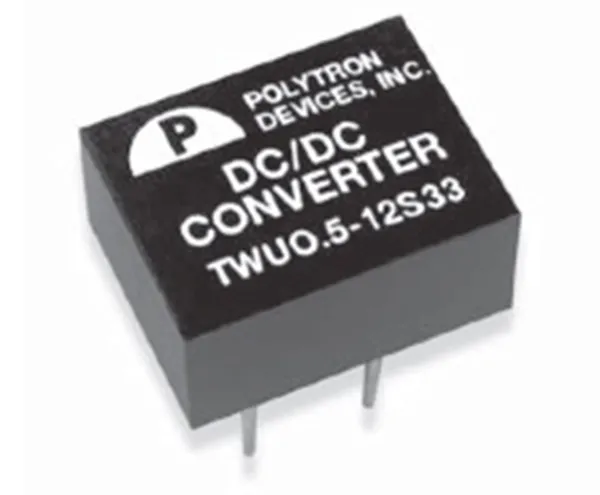

Our customizable 0.5 to 1.0 watt single output DC-DC converter features a low profile, miniature DIP package, 1000 Vdc input/output isolation and internal SMD Construction.

INPUT

• Voltage Range: ±10%
• Input Filter: Internal capacitor

OUTPUT

• Voltage Accuracy: ±5% max
• Line Regulation at FL: ±10% max
• Load Regulation at FL to 1/4L
• 3.3V and 5V Output: 15% max
• 9V, 12V, 915V Output: 10% max
• Ripple Noise (20 MHz Bw): 50 mVp-p max
• 3.3V and 5V Output Type: 100 mVp-p max
• 9V, 12V, 15V Output Type: 1% p-p max
• Temperature Coefficient: 0.3%/°C max

GENERAL

• Isolation Voltage: 1000 Vdc
• Isolation Resistance: 1000 MOhms
• Switching Frequency: 100 KHz typ.
• Short Circuit Protection: Momentary

ENVIRONMENTAL

• Operating Temperature Range: 0 to 71°C
• Storage Temperature Range: -40 to 105°C
• Cooling: Free Air Convection
• Humidity Non-Condensing: 20 - 95% RH

PHYSICAL

• Case Material: Non-Conductive Black Plastic
• Weight: 1.5 grams typ.
• Dimensions: 0.50” x 0.40” x 0.25” (12.70 x 10.16 x 6.28 mm)
• Lead Temp: 1.5 mm from case in 10 sec. 105°C
