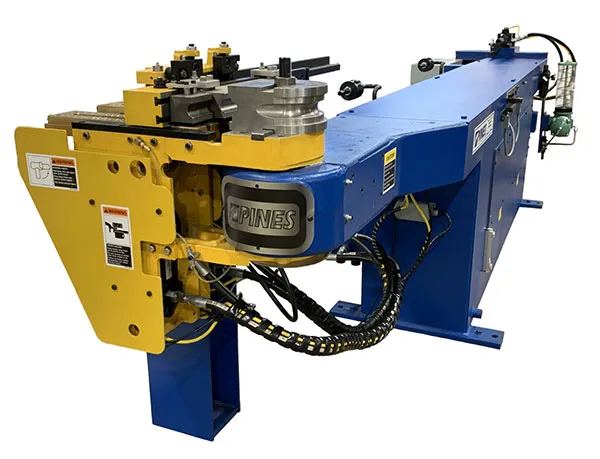

Manual Model 1

Manual Model 1

The Pines Model 1 is built to stock with the following standard equipment:

• Counter clockwise rotation
• 1xD bend capability
• Standard pressure die holder and master bar
• Clamp die holder
• Mandrel extractor
• 7 Inch color touch screen Dial-A-Bend® DAB 7 Control
• Independent clamp and pressure die close
• Standard wiper die holder

Many options are available to customize the machine. Including but not limited to:

• In-line pressure die assist
• Electric controls (swing and stationary arms)
• Mandrel lubricator
• Base extensions for increased tube over mandrel length
• Overhead tie bars
• Laser scanner or safety mat to guard the swing arm area
• Clockwise rotation
• Long arms

Capacities

• Round tubing, mild steel Y.P. to 40,000 psi – 1 1/2” x .109”
• Round Tubing, non-ferrous Y.P. to 25,000 psi – 1 1/2” x .187”
• Round tubing, Stainless steel Y.P. to 60,000 psi – 1 3/8” x .065
• Steel pipe, schedule 80 – 1
• Square tubing, mild steel – 1 1/8“x .120

Specifications

• Maximum standard radius – 8”
• Minimum radius to diameter ratio – 1
• Maximum bend angle – 190º
• Bend arm repeatability – +/- .1º
• Maximum standard tube length over mandrel – 119”
• Bend arm speed – Forward – 15.5 RPM / Reverse 28.6 RPM / Average 22 RPM (180°)
• Motor horsepower – 7.5HP
• Approximate weight – 2,750 lbs.

Safety Features

• Safety plates protecting both bend and return sides of swing arm
• All electrical components in power panel are “finger-safe” and are in accordance with NFPA standards
• Machine is properly labeled with pinch and hazard points
