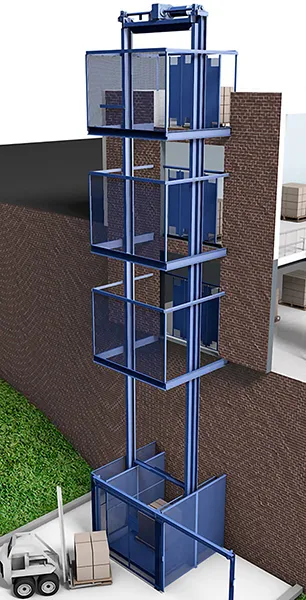

M Series 2-Post–Mechanical Vertical Lift
M Series 2-Post–Mechanical Vertical Lift
VERSATILE DESIGN IDEAL FOR ANY APPLICATION
The M Series mechanical lifts from PFlow Industries safely and efficiently lift loads up to 10,000 lbs. The M Series mechanical lift can be designed to reach any number of floor levels.
These versatile 2-post vertical reciprocating conveyors (VRCs) are ideal for high-speed and/or high-cycle automated systems.
The M Series’ carriage has a standard size of 12′ wide by 10′ long and is lifted and lowered by heavy-duty roller chains. The 2-post M Series VRC is available in cantilever or straddle configurations.
M Series Overview
- Load capacity up to 10,000 lbs
- Standard carriage size of 12’ x 10’
- Unlimited vertical rise
- Standard travel speed of 25 feet per minute (FPM)
- Unlimited / continuous cycles per hour
- Indoor or outdoor use
- Lifetime structural warranty
- Conforms to ASME B20.1 Safety Standards
Advanced safety features are built into each M Series VRC
- A limit switch controls travel of the carriage. When the switch is tripped, or power is lost, the motor shuts off and the mechanically actuated brake engages
- Chain sensors shut down the lift if chain tension is lost
- Certified safety cams prevent carriage descent in the unlikely event of a chain failure
- Chain tensioners and guides prevent chains from
jumping on sprockets
Features & Benefits
- Carriage is lifted and lowered by heavy-duty roller chain attached to a synchronized mechanical lifting mechanism mounted on top of the 6” guide columns
- Quality construction, reliability, and long-term performance
- Carriage, straddle, or cantilever designs available
- Transports large, heavy loads between two or more levels
- Ideal for high-speed or high-cycle automated systems
- Hot-dipped galvanized or epoxy finish available for outdoor or wash-down environments
Product Specifications
Best For
Moving heavy loads to and from multiple floor levels. Suitable for indoor and outdoor use.
Capacity
Up to 10,000 lbs
Carriage size
Standard carriage size is 12’ x 10’
Travel Speed
Standard travel speed is 25 FPM, speeds of up to 400 FPM available
Cycles
Unlimited Cycles
Safety Gates
Safety codes (ASME B20.1) require interlocked gates with enclosures on all sides of the lift. Enclosures must be a minimum of 8’ high and reject a ball 2” in diameter.
Electrical
Standard power requirements are 230/460VAC, 3-phase. Control voltage is 110VAC. Standard control panels and push button stations are NEMA 12 rated. Push button stations provided at each level include momentary contact, call/send operators and mushroom head emergency stop.
