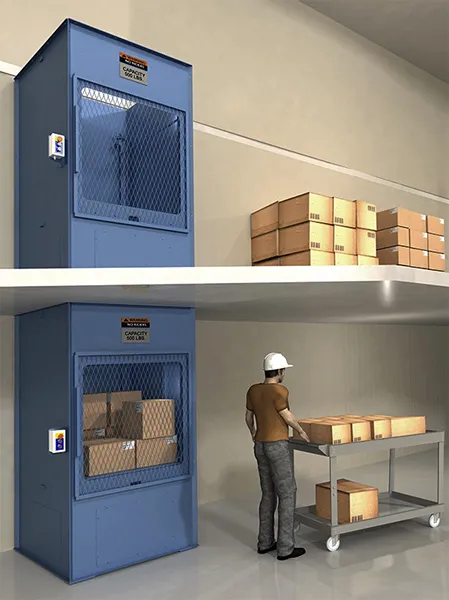

B Series–Mechanical Box Lift
B Series–Mechanical Box Lift
THE IDEAL WAY TO MOVE SMALL LOADS BETWEEN LEVELS
The B Series Box Lift from PFlow Industries is ideal for automatically moving boxes totes, cartons, sacks, cases and individual parts, with ease and speed, to mezzanines or between floors and conveyor levels.
Designed for quick and easy installation, PFlow’s B Series Box Lift’s sections are shipped pre-wired with quick-connect wiring. With a mechanical motor/gear reducer located in an easy-to-access location at the base of the unit, maintenance can be performed quickly and easily, reducing downtime and saving your operation time and money.
B Series Box Lift Overview
- Lifts loads up to 500 lbs in two-level applications
- Carriage size is 3’x3′
- Vertical rise to 15’9″
- Unit is positioned to load/unload at an ergonomic30″ above the floor
- Standard travel speed is 30 feet per minute
- Unlimited, continuous cycles
- Indoor use only
- Lifetime structural warranty
- Conforms to ASME B20.1 Safety Standards
Advanced safety features are built into each B Series VRC
- Spring-loaded dual safety pins prevent uncontrolled carriage descent in the event of chain failure
- Electro-mechanical door interlocks prevent opening carriage gate when lift is in motion
- Full-height safety enclosure keeps loads secure
- Motor overload protection prevents excessive current draw
For lighter package loads, see our DB Series package handling VRC with a lifting capacity of up to 100 lbs.
Features & Benefits
- Loading and unloading from one of three sides at each level
- Mechanical motor/gear reducer located at the base of the unit for ease of maintenance
- Unit ships in modular sections pre-wired with quick-connect wiring
- Interlocked swing gates are provided at each level to ensure safe lift operation
- Modular swing gates can be configured to hinge right and lock left or vice versa
- Durable, high-quality construction ensures reliable long-term performance
- Advanced safety features protect workers and materials
Product Specifications
Best for
Moving boxes, packages, cases, crates, and other cargo in production lines, manufacturing plants, storage facilities, and more
Capacity
Lift loads of up to 500 lbs
Carriage size
The standard carriage size is 3’x3’
Travel Speed
Standard travel speed is 30 FPM
Cycles
Continuous use and unlimited cycles
Operations
Carriage is lifted and lowered by dual roller chains connected to electric motor-reducer assembly
Safety Gates
Standard units include interlocked swing gates and full-height enclosures on all sides
Electrical
Standard power requirements are 230V single-phase or 230V/460V 3-phase. Low voltage controls.
