FAST AND SAFE TRANSPORTATION FOR SMALL LOADS

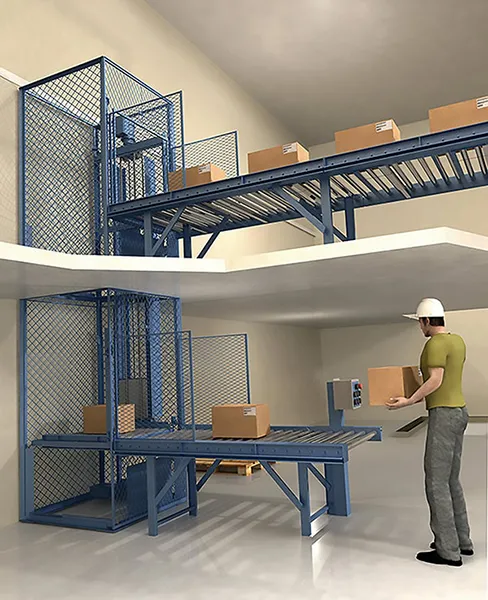

The DB Series, a continuous vertical lift from PFlow, is ideal for moving lighter loads between floors or conveyor levels.
The DB Series lifts loads up to 100 lbs and has a standard carriage size of 3’ x 3’. Loading and unloading are accessible from three sides.
With a standard travel speed of 60 feet per minute, the DB Series is ideal for high-speed applications. We can custom-design a solution to offer speeds up to 400 FPM.
The DB Series lift is completely self-contained and self-supporting.
When used with a conveyor system, it uses far less space than inclined conveyors.
- Lifts loads of up to 100 lbs
- Standard carriage size is 3’x3′
- Standard travel speed is 60 FPM
- Unlimited cycles, continuous use
- Indoor use only
- Lifetime structural warranty
- Conforms to ASME B20.1 Safety Standards
For heavier package loads, see our B Series box lift with a capacity of 500 pounds.
Features & Benefits
- 3' x 3' carriage design saves space by handling loads typically moved by inclined conveyors.
- Fully enclosed carriage prevents materials from falling while being lifted and lowered.
- Counterweight lifting mechanism minimizes horsepower requirements and saves energy.
- Pre-assembled components allow for ease of installation.
- Durable, high-quality construction ensures safe, reliable, and long-term performance.
Product Specifications
Best for
Transports loads to mezzanines, between floors, or between conveyor levels. Ideal for high-speed applications that require lifting boxes, cartons, packages, totes, containers or cases.
Capacity
Lift loads of up to 100 lbs
Carriage Size
The standard carriage size is 3’x3’
Travel Speed
Standard travel speed is 60FPM, with speeds of up to 400 FPM available
Cycles
Unlimited cycles and continuous use
Drive Options
High-speed variable frequency or Servo drive options
Safety Gates
Standard units include integral, full-height enclosures on all sides made of 1/2″ expanded metal
Electrical
Standard power requirements are 230V/460V, 3-phase. Control voltage is110VAC.
