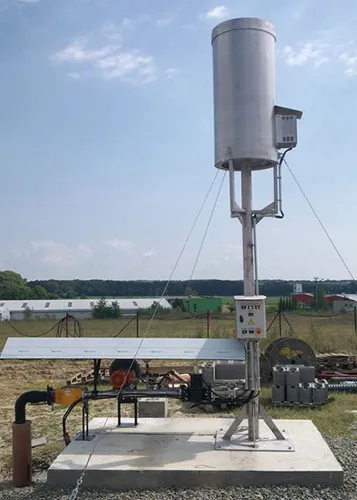

Residual gas burner - FLARE NTF
Residual gas burner - FLARE NTF
USE:
The PBS POWER EQUIPMENT, s.r.o. manufactures, installs and services atmospheric NTF type Flares used for combustion of residual biogas (resp. other combustible gas) mainly in cases of emergency stops of main consumers (cogeneration units).
TECHNICAL DESCRIPTION OF FLÉRA:
The operation of Flare is fully automatic and requires no permanent service. Only occasional checks are required.
Flare NTF is a single-output burner with the option of the gas flow and combustion adjustment by qualified service. The adjustment is carried out by means of the ON - OFF system, while the gas consumption is defined by the time of combustion given by external signals (mainly percentage infilling or pressure ratios in the gas storage).
Combustion air is being sucked in from the ambient environment during the process of combustion in Fléra. The presence of flame is monitored with a flame monitoring device - ionization electrode.
The gas flow is controlled with a solenoid valve (with 2 valves for larger types) complying with the requirements of EN-161 and ATEX, and also with an end switch (monitoring the closing of the valve prior the start-up). The gas inlet is further equipped with an explosion deflagrating safety device.
Automatics placed in a separated electric box on the Flare supporting column controls the burner cycle and stops. It can be placed further from Fléra, out of the explosion risk zones area.
