OSAI ASSpA

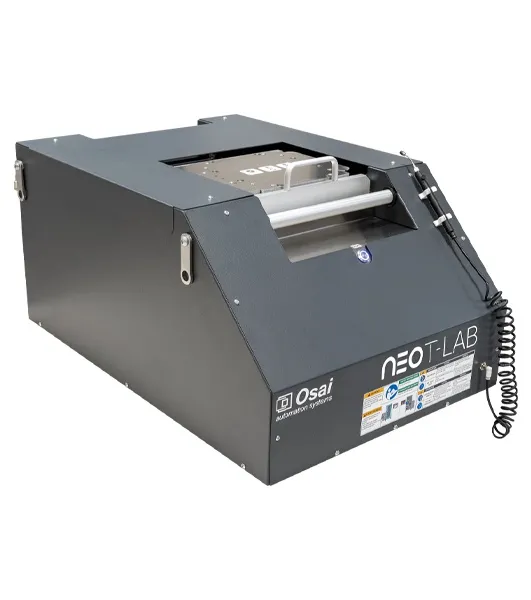

Neo T-LAB

Neo T-LAB

Laboratory equipment for environmental MEMS

• The Neo T-LAB is the latest generation OSAI laboratory solution. Thanks to its compact size, the Neo T-LAB is the smallest and most performing air conditioning chamber available on the market.
• In addition to the small footprint, the Neo T-LAB offers the possibility of being configured with different test stimuli, such as temperature, pressure, humidity and gas.
• It is possible to design the tailor-made Neo T-LAB, according to the customer's needs, thus passing from the laboratory to production in a few simple steps.

Key points

Compact

NeoEpc is a compact and portable solution

Multi stimuli

Possibility to equip the room with different stimuli

Accuracy

High accuracy stimulifor device testing

Without limits

Unlimited temperature and pressure setpoints

Mass production

NEOT-LAB is scalablefor mass production

Customizable

Possibility tocustomize the sockets

MAIN CHARACTERISTICS

• Temperature range : -20 ° up to 80 ° C or -40 ° up to 125 ° C
• Temperature accuracy : 0.5 ° C
• Temperature stability : 0.3 ° C
• Average stabilization time : 10s
• Pressure range : 0 to 6bar
• Pressure stabilization time : 3s
• Pressure stability : according to the external regulator
• MEMS communication Protocol : SPI, I2C, GPIO
• PC interface : USB
