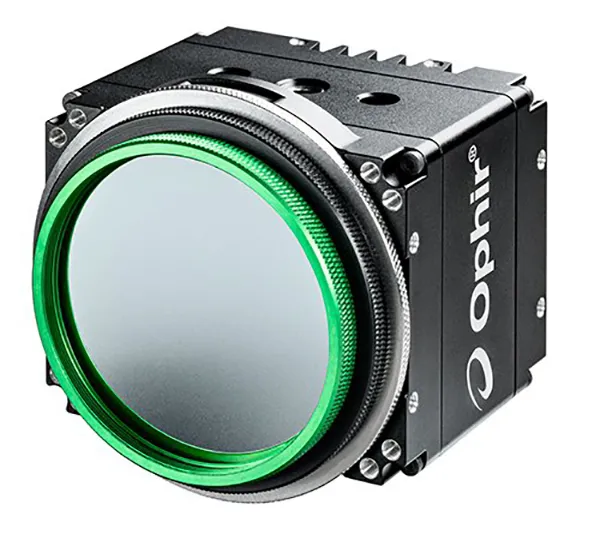

SP504S Beam Profiling Camera

SP504S Beam Profiling Camera

GigE APS-H CMOS Global shutter Camera with BeamGage

Description:

The SP504S camera accurately captures and analyzes wavelengths from 340 nm 1100nm. It is our largest active area at a 32.5 mm format, has a wide dynamic range, and unparalleled signal to noise ratio, making it ideal for beam profiling of very large beams.

• 23mm x 23mm imager format
• Highest resolution
• CMOS, Global shutter
• 44.6 dB true dynamic resolution

Accessories

Customers that purchase the above items also consider the following items:

Optical Camera Trigger

The Optical Camera Trigger is an optical sensor that detects pulsed light sources and generates outputs to trigger a camera. The front aperture of the Optical Trigger must be directed at a light source that provides the necessary properties for trigger activation. (e.g. a laser flash lamp, a pick-off source from the main laser beam, or similar).

LBS-100 Attenuator

The LBS-100 system that is not as compact as the LBS-300s above but has

LBS-400 Attenuator

The LBS-400 beam sampler attachment for Pyrocams and large format Beam Profilers allows measuring UV, NIR or IR wavelength laser beams with diameters up to 1 inch (25.4mm) and powers ranging from 10mW to ~500W(1). The output beam preserves the polarization of the original beam.
