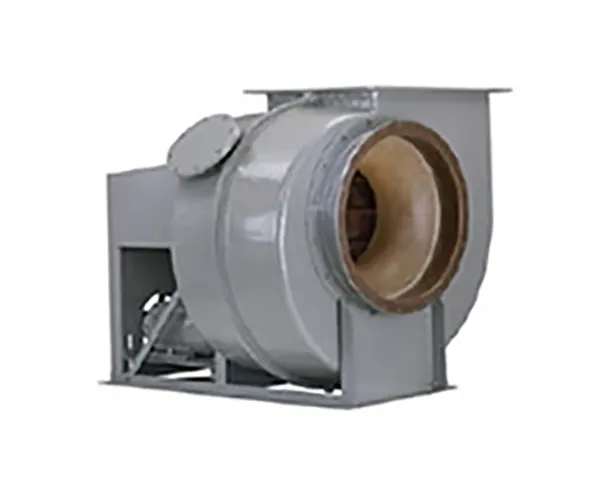

Backward Inclined FRP Fans

NYB fiberglass reinforced plastic fans are used for corrosive gas streams in a wide variety of process applications. FRP Fume Exhausters and FRP General Fume Exhausters have two types of backward inclined wheels, medium pressure (MP) and high pressure (HP). The wheels provide high efficiency and quiet operation with a non-overloading horsepower characteristic. All parts that are exposed to the airstream are constructed of high-quality corrosion-resistant fiberglass reinforced plastic. FRP construction makes these fans resistant to attack from most chemicals and are suited for applications in the chemical, pulp and paper, wastewater-treatment, fertilizer, pharmaceutical, and metal industries.

WHEEL DESIGN:	Single Thickness
DESIGN FEATURES:	VOLUME - to 84,000 CFM (142,700 m³/hr) PRESSURES - to 25" WG (6,230 Pa) TEMPERATURES - to 250°F (121°C) EIGHT SIZES - 18"- 60" (457mm-1524mm) ARRANGEMENTS - 1, 8, 9, 9E, 9F, 10
AVAILABLE MATERIALS OF CONSTRUCTION:	Fiberglass-reinforced-plastic
GUIDE SPECIFICATIONS:	Specifying FRP Fan Equipment - FE Fans (GS-571)
INSTALLATION, OPERATION & MAINTENANCE MANUAL:	IM-180
SIMILAR PRODUCTS	FRP General Purpose Fume Exhausters (For Lower Pressures and Volumes) FRP Fume Exhausters (For Higher Pressures and Volumes)
