New York Blower Company

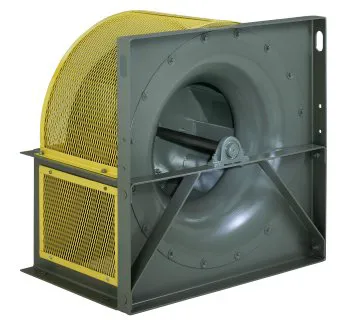

Airfoil Plenum Fans

New York Blower Plenum Fans are designed for applications in commercial air-handling systems and pressurized plenums found in industry.  Plenum Fans provide maximum application flexibility at lower cost.

DESIGN FEATURES

• Four airfoil wheel choices:
• AcF and ECF-9 wheels, Sizes 12”-73”.
• AcFq and ECF-11 wheels, Sizes 18”-60”.
• Capacities to 180,000 CFM.
• Pressures to 13”WG.
• Aerodynamic, spun inlet cone.
• Choice of six horizontal arrangements:
• Arrangement 1 —Sizes 12” to 15”
• Arrangement 3 —Sizes 16” to 73”
• Arrangement 3R/3L —Sizes 16” to 40”
• Arrangement 3T —Sizes 16” to 49”
• Arrangement 4 —Sizes 12” to 60”
• Arrangement 3V for vertical mounting in
• Sizes 16” to 73”.
• Designed and tested to minimize natural
• frequencies in the operating range.
