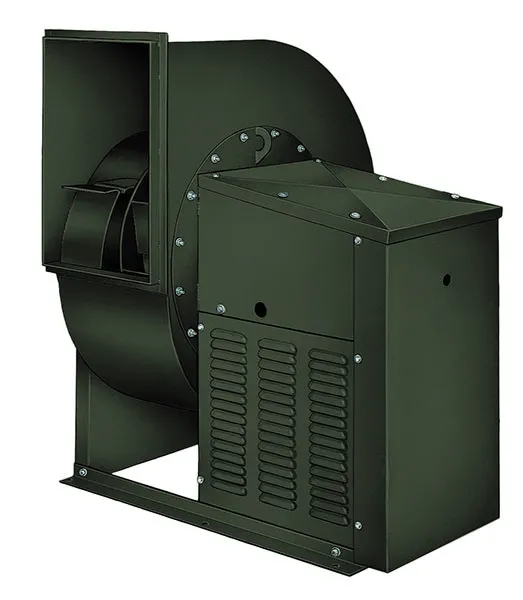

Backward Inclined Centrifugal Ventilators are available with three wheel designs. Airfoil blades are the most efficient with the lowest sound levels. Curved blades are idea for high-volume, low-pressure applications. Single thickness is best suited for airstreams with light material. Two fan lines, General Purpose and Square Fans, utilize backward inclined wheels.
WHEEL DESIGN:
Backward Inclined-Airfoil Backward Inclined-Curved Blade Backward Inclined-Single Thickness
DESIGN FEATURES:
VOLUME - to 26,500 CFM (450,000 m3/hr) PRESSURES - to 8" WG (1,990 Pa) TEMPERATURES - to 650°F (343°C) NINE SIZES - 12"-36" (305mm-915mm) ARRANGEMENTS - 10
AVAILABLE MATERIALS OF CONSTRUCTION:
Carbon Steel Stainless Steel Aluminum Special Alloys
PRODUCT BULLETIN:
General Purpose Packaged Fans (051)
GUIDE SPECIFICATIONS:
Specifying General Purpose Fans with AcoustaFoil Wheel (GS-051)Specifying General Purpose Fans with Backward Curved Wheels (GS-053)Specifying General Purpose Fans with PLR Wheel (GS-052)
INSTALLATION, OPERATION & MAINTENANCE MANUAL:
IM-150
MATERIAL SPECIFICATIONS:
GP_Dims.pdf
SIMILAR PRODUCTS
Backward Inclined Single Width Class 1-3 Fans (For Higher Capacities)
FAN-TO-SIZE ONLINE:
General Purpose Fans
ONLINE DRAWINGS:
