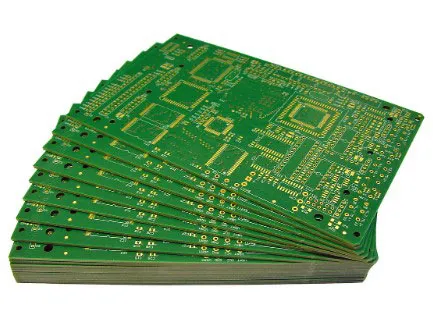

Our low-priced range of printed circuit boards already includes many high-tech options such as 0.1mm conductor track/rest ring and 0.2mm bore . The standard production time starts at a quick 5 working days (WD) from 0.06m². If you order your circuit boards by 9:00 a.m., the current day counts as the production day.
Always included
Standard production time from 5 working days
Track: 0.1mm
Residual ring all around: 0.1mm
Holes: 0.2mm
Bohranzahl: No Limit
E-Test
Design-Rule-Check
Solder stop 2x different e.g. for SMD (green)
Position print 1x (white)
cracks
Gerber-, Eagle-, Target- Import
Design Parameter
setup costs
Photoplot
Milling, DK slots
Surface HAL lead-free ( RoHS-compliant )
Material FR4 1.55mm (Multilayer: 1.6mm)
35µm Cu
Multilayer additionally with:
