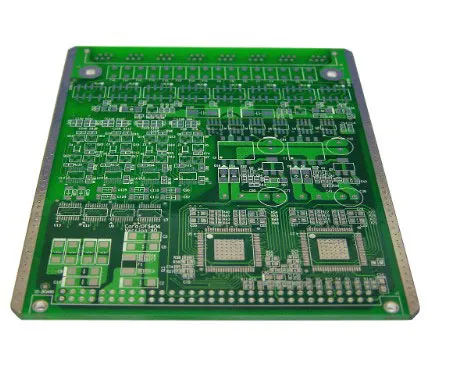

PCB prototypes

Our range of printed circuit board prototypes already includes many high-tech options such as 0.1mm conductor track/restring and 0.2mm bore . The standard production time starts at a fast 4 working days (WD) up to 0.05m², 1WD Express is also possible . If you order your circuit boards by 9:00 a.m., the current day counts as the production day.

Always inclusive

• Standard production time from 4 working days (2 layers up to 0.05m²)or 5 working days (1, 2, 4 layers up to 0.15m²)
• Track, track spacing: 0.1mm
• Residual ring all around: 0.1mm
• Holes: 0.2mm
• Number of holes: No Limit
• E test
• Design rule check

• Solder stop green (2x different), e.g. for SMD
• Position print 1x (white)
• Gerber, Eagle, Target import
• setup costs
• photoplot
• Milling, DK slots
• Surface HAL lead-free ( RoHS-compliant )
• Material FR4 1.55mm, 35µm Cu
