müller co-ax gmbh
Friedrich-Müller-Str. 1
74670 Forchtenberg
Germany
ports
threads G 3/8 - G 3/4flanges PN 16/40/100
function
NC
pressure range
0-16 / 0-40 / 0-64 / 0-100 bar
KV value
4,8 m³/h
media
contaminated gelatinous highly viscous liquid gaseous
flow direction
A B as marked
switching cycles
200 1/min
switching time
opening 80 msclosing 80 ms
media temperature
DC -20 °C — +100 °CAC -20 °C — +100 °C
ambient temperature
DC -20 °C — +80 °CAC -20 °C — +80 °C
weight

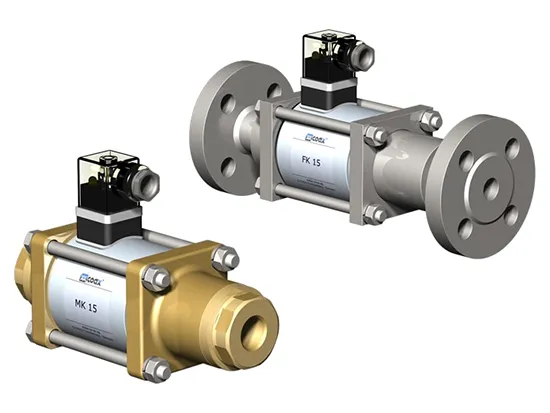

MK 3,8 kgFK 5,0 kg
nominal voltage
Un 24 V DCUn 230 V 40-60 Hz AC
actuation
DC direct-current magnetAC direct-current magnet with integrated rectifier
insulation rating
H 180 °C
protection
IP65
energized duty rating
ED 100%
connection
plug acc. DIN EN 175301-803, form A, 4 positions x 90°, wire diameter 6-8 mmM12x1 connector acc. DESINA / VDMA
The valves' technical design is based on media and application requirements. This can lead to deviations from the general specifications shown on the data sheet with regards to the design, sealing materials and characteristics.
