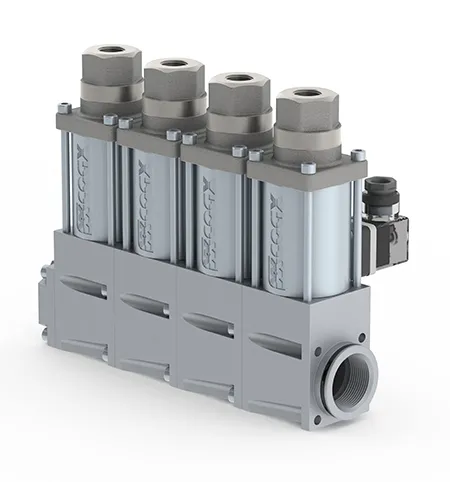

Co-ax manifold valves

ports	threads G 1/4 - G 3/4
function	NC
pressure range	0-16 / 0-40 / 0-64 / 0-100 bar
KV value	2,5 m³/h
media	contaminated liquid gaseous
flow direction	A B as marked
switching cycles	200 1/min
switching time	opening 25 msclosing 25 ms
media temperature	DC -10 °C — +100 °CAC -10 °C — +100 °C
ambient temperature	DC -10 °C — +80 °CAC -10 °C — +80 °C
weight	1,5 kg
nominal voltage	Un 24 V DCUn 230 V 40-60 Hz AC
actuation	DC direct-current magnetAC direct-current magnet with integrated rectifier
insulation rating	H 180 °C
protection	IP65
energized duty rating	ED 100%
connection	plug acc. DIN EN 175301-803, form A, 4 positions x 90°, wire diameter 6-8 mmM12x1 connector acc. DESINA / VDMA

The valves' technical design is based on media and application requirements. This can lead to deviations from the general specifications shown on the data sheet with regards to the design, sealing materials and characteristics.
