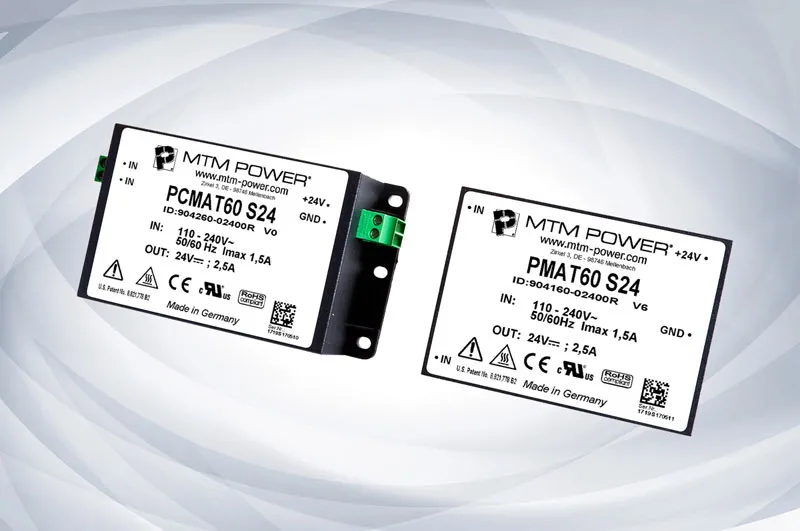

AC/DC Power Supply Modules

With the series PMAT/PCMAT60, MTM Power® expands its program with the third generation of AC/DC modules for reliable supply of electrical and electronic systems. The 60 W modules (ac-dc power supply modules)are electrically and mechanically compatible to the PMAS/PCMAS48 series and thus offer 25 % more output power in the same case. The typical efficiency of Industrial power supply modules is up to 89 %.

The thermoselective vacuum encapsulation is a reliable protection against mechanical stresses and environmental conditions like humidity and conductive dust. The ac-dc power supply modules are optionally available for PCB mounting (PMAT) or for chassis mounting (PCMAT) with screw connectors. The wide input voltage range of 85…264 VAC enables the worldwide use at AC voltage grids. As an option, an active inrush current limiting is available which is particularly advantageous when operating several modules at only one control circuit. On the output side, stabilised voltage of 24 VDC is provided; other output voltages are available on request.
