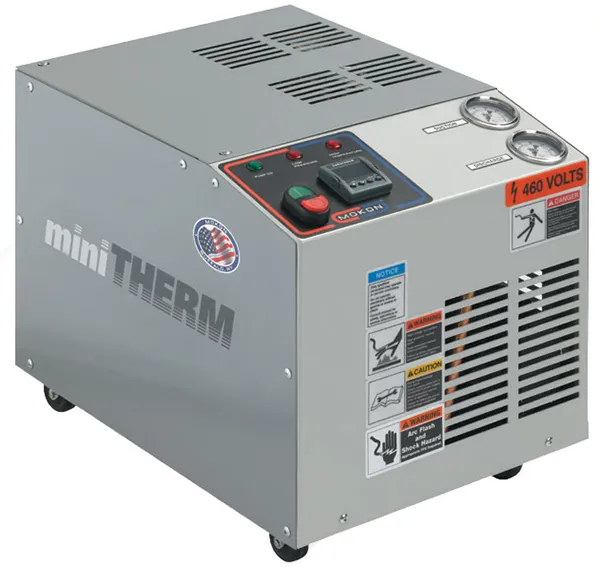

Minitherm®

Minitherm®

Mokon's Minitherm® circulating water temperature control system is designed to surpass today's safety standards, while providing accurate control of your process temperature. The Minitherm's compact package fits into tight spaces reducing floor space requirements and is ideal for small tonnage molding machine and lab applications.

The Minitherm is available in 9 GPM pumping capacity and heating capacities of 2 or 4 kW, for operation up to 250°F (121°C). Each Mokon Minitherm is equipped with a non-proprietary microprocessor-based PID controller to ensure accurate control, a horizontally mounted inline cast brass heater manifold for faster heat up and cool down providing high energy efficiency, and non-ferrous piping and components that do not rust or contaminate water.

All Minitherm systems come standard with a cULus 508A labeled electrical sub-panel. All of these features and more, combined with our extended warranty, make the Minitherm an easy choice for delivering precise and accurate temperature control.

FEATURES

• Single zone configurations
• Compact, portable design
• Cast iron centrifugal pump with stainless steel impeller
• Horizontally mounted inline cast brass heating manifold with copper heating elements
• Small hold-up volume and energy-efficient heater design
• 1/16 DIN non-proprietary microprocessor-based controller in easily accessible panel
• Low pressure safety shut-off switch
• Fluid high temperature safety shut-off switch
• Pressure relief valve
• Solenoid cooling valve
• Automatic air purge
• Cast brass fluid connections securely mounted to cabinet

• Suction and discharge pressure gauges
• Removable panel for easy access to heater
• Heavy-duty removable casters for portability
• Power cord
• Powder-coated finish
• cULus 508A labeled electrical subpanel

Additional Features:

• Extended warranty:
• 3 years on system
• 5 years on microprocessor controller and safeties
• Lifetime on seals, piping and manifold

The Mokon Minitherm is an economical circulating water temperature control system for your small tonnage molding machine, prototype and lab applications. Although small in size, the Mokon Minitherm is big in accuracy and reliability, like all of our Mokon systems!
