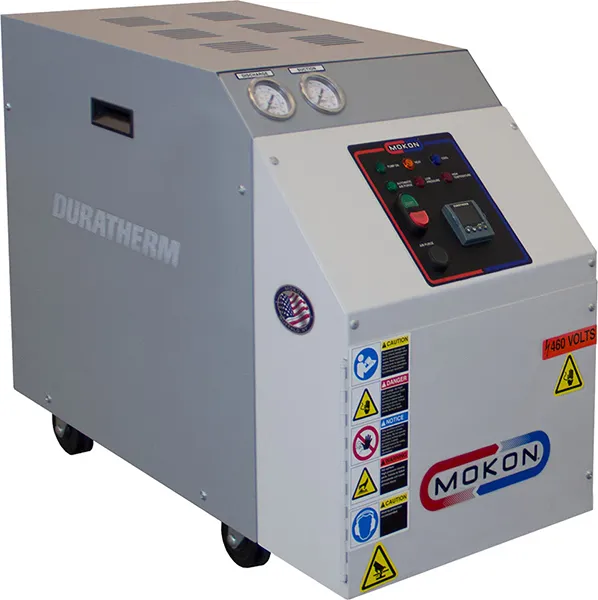

Duratherm Single Zone

Duratherm Single Zone

Mokon's Duratherm cirulating water temperature control system maximizes performance with temperatures up to 250°F (121°C). The Duratherm design features an advanced heating canister and stainless steel diverter, which create a forced flow path for higher heat transfer rates, providing unmatched control efficiency and accuracy.

The Duratherm is built with nonferrous and stainless steel materials of construction, which provide unsurpassed corrosion resistance, including a stainless steel pump, housing, impeller, and shaft. The number of piping connections is reduced to ensure leak-free operation and the compact design makes it easy to move the Duratherm wherever it is needed most.

All Duratherm systems come standard with a cULus 508A labeled electrical sub-panel. All these features and more, combined with our extended warranty, make the Duratherm an easy choice for delivering precise and accurate temperature control.

FEATURES

• Single and dual zone configurations
• Compact, portable design
• Stainless steel pump, composite impeller and silicon-carbide seal
• Horizontal stainless steel heater canister with unique turbulent flow diverter
• Small hold-up volume and energy-efficient heater design
• 1/16 DIN non-proprietary microprocessor-based controller in easily accessible panel
• Low pressure safety shut-off switch
• Fluid high temperature safety shut-off switch
• Pressure relief valve
• Solenoid cooling valve
• Cast brass fluid connections securely mounted to cabinet
• Suction and discharge pressure gauges
• Removable panel for easy access to heater
• Heavy-duty removable casters for portability
• Powder-coated finish
• cULus 508A labeled electrical subpanel

Additional Features:

• Small hold-up volume and energy-efficient heater design
• Compact, sleek vertical design
• Extended warranty:
• 3 years on system
• 5 years on microprocessor controller and safeties
• Lifetime on seals, piping and canister
