Mokon

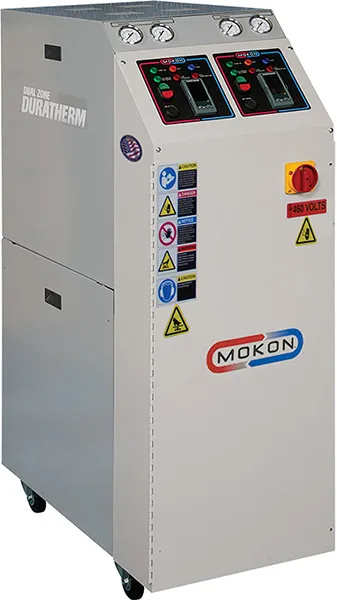

Duratherm Dual Zone

Duratherm Dual Zone

Mokon's Dual Zone Duratherm circulating water temperature control system provides two independent zones of control from one location in a sleek, vertical design without increasing the amount of floor space required for operation.

The Dual Zone Duratherm is built with an advanced heating canister design and nonferrous materials of construction which provide unsurpassed corrosion resistance, including a stainless steel pump, housing, impeller, and shaft. The number of piping connections is reduced to ensure leak-free operation.

All Duratherm systems come standard with a cULus 508A labeled electrical sub-panel. All these features and more, combined with our extended warranty, make the Duratherm an easy choice for delivering precise and accurate temperature control.

FEATURES

Dual zone configurations

• Compact, portable design
• Stainless steel pump, composite impeller and silicon-carbide seal
• Horizontal stainless steel heater canister with unique turbulent flow diverter
• Small hold-up volume and energy-efficient heater design
• 1/16 DIN non-proprietary microprocessor-based controller in easily accessible panel
• Low pressure safety shut-off switch
• Fluid high temperature safety shut-off switch
• Pressure relief valve
• Solenoid cooling valve
• Cast brass fluid connections securely mounted to cabinet
• Suction and discharge pressure gauges
• Removable panel for easy access to heater
• Heavy-duty removable casters for portability
• Powder-coated finish
• cULus 508A labeled electrical subpanel

Additional Features:

• Small hold-up volume and energy-efficient heater design
• Compact, sleek vertical design
• Extended warranty:
• 3 years on system
• 5 years on microprocessor controller and safeties
• Lifetime on seals, piping and canister
