Bin Picking Systems

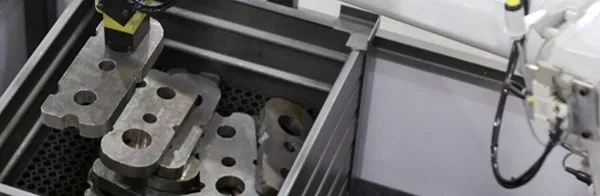

Midwest Engineered Systems provides robotic random bin picking systems to locate and separate certain parts for production purposes. The bin-picking process that MWES uses is based on: identifying the correct part, determining the location, and picking randomly placed parts from a bin using robotic automation and 3D scanning systems. Our robotic bin-picking systems are designed to distinguish parts of different shapes regardless of surface finish, shine, rust or color and can locate the top edge of the bin to adjust for bin placement variations along with alerting the operator if the bin is empty or if any foreign debris is detected in the bin.
Automated Random Bin Picking
With structured bin picking, the parts are ordered into predefined locations. During the unloading portion of the manufacturing process, this sort of bin picking is usually less costly and simpler as opposed to random bin picking.
Robotic random bin picking technology allows for containers to be bulk-filled with parts that have just cleared through manufacturing cells. This sort of bin picking technology can send bins to downstream operations, set each bin in place and thus keep the automated manufacturing running smoothly.
Robotic random bin picking is typically witnessed in industries that automate the manufacturing processes of stamping, creating molded plastics and in creating medical assemblies. With robotic bin-picking cells, the part to be picked by the robot must be inspected with respect to size, shape and material. Factors such as picking and placing parts have to be included in the determination of these sorts of cells. Normally, parts are picked up from a bin at a rate between 6–15 parts per minute. Randomly placed parts can be stored in a variety of bin types: trays, big wire containers or in plastic totes that can range from small to somewhat big.
3D vision systems and tools using flexible end of arm (EOAT) systems are utilized to configure a number of bin setups:
- Can remove tier sheets, used to separate part layers
- Able to perform accurate final part placements
- Quality control capabilities for parts that are a mismatch with defined specifications
- Capable of working with tall bins that must be emptied
- Can discover appropriate pick patterns for bin parts that were placed randomly
- Able to deal with a variety of part weights, shapes and sizes
