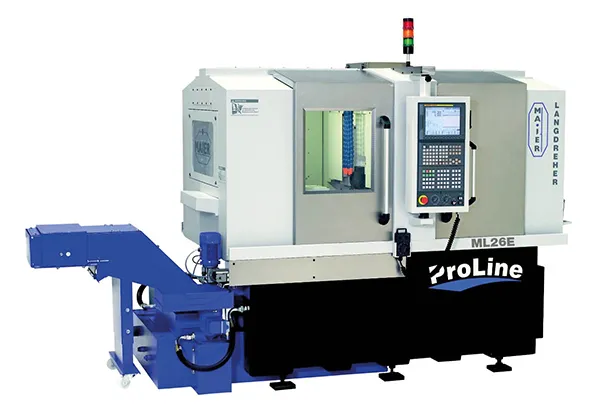

Maier Proline E

MAIER PROLINEE

SHORT MACHINING CYCLES FOR COMPLEX WORKPIECES

Short machining cycles even with very complex workpieces.16-station tool turret, 12 axes and up to 35 tools.

•   3-part system: 3 tools engaged at the same time
•   12 axes
•   Cross processing 4-fold
•   up to 35 tools (26 driven)

System 1: 6 lathes 12 x 12 mm or 5 x 16 x 16 mm, 4 driven tools across

System 2: Y2 axis at rear (3 fixed + 6 driven tools)

System 3: 2 x 8 station turrets with up to 16 driven tools

•  C axis on main spindle + 5° mechanical indexing
•  C axis on counter spindle + 5° mechanical indexing
•  C-axis on turret + freely programmable angle setting
