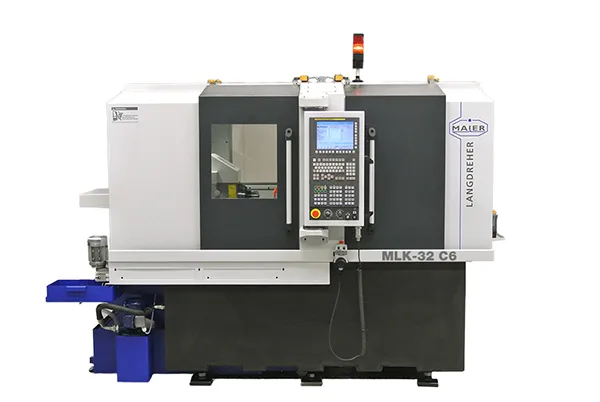

Maier C6

MAIERC6

ECONOMY PAIRED WITH THE HIGHEST PRECISION

Highly precise, fast and in optimal quality. The machine tools from MAIER are created for metalworking at a high level. All machine tools are developed and manufactured in-house. You can tell by looking at them: in the stability of the machine structure, in the design advantages, in the effective interaction of machine and tool technology.

MAIER is currently the only European specialist for CNC Swiss type lathes. More than 1000 machines on the market are the best proof of the value of "Made in Germany".

Long or short turning - with Maier you achieve the highest possible productivity and open up new dimensions of precision. We would be happy to advise you and support you in the implementation of your customer requirements.

MAIER is currently the only European specialist for CNC Swiss type lathes. More than 1000 machines on the market are the best proof of the value of "Made in Germany".

Long or short turning - with Maier you achieve the highest possible productivity and open up new dimensions of precision. We would be happy to advise you and support you in the implementation of your customer requirements.

FURNISHING

• Basic machine with 9 axes
• Main and counter spindle each with full NC C-axis
• Additional mechanical indexing of the spindles (5°)
• Pneumatic ejector for parts max. 100 mm
• Electronic hand wheel with program check
• Synchronous guide bush unit
• Coolant pump with 1.5 bar and 240 l/min
• 32m/min rapid traverse speed in all axes
• Pneumatic parts chute and workpiece conveyor
• Stable, vibration-free machine bed made of polymer concrete

System 1 main spindle

• Turning tool holder with 6 tool holders (16x16mm)
• Full NC C axis on the main spindle
• Additional mechanical 5° indexing

System 3 main spindle

• Turning tool holder with 2 tool holders (16x16mm)
• Drill carrier 4-fold (Ø 20mm)
• Driven transverse processing tools (2x)

System 2 counter spindle

• Rear side machining with 4-fold tool carrier
• Full NC C axis on the main spindle
• Additional mechanical 5° indexing
