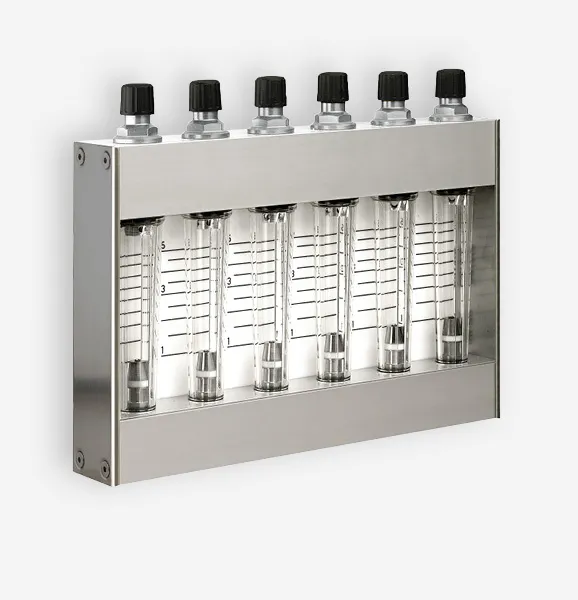

Multi-Tube Flow meter Model VEx

Variable area flow meter Model VEx is a sturdy industrial flow meter with heavy-duty impact resistant polymer flow tubes. It has flow adjustment valves on the outlet. It comes in a range of different options and offers a choice of end blocks: aluminium, stainless steel AISI 316 or polyamide. It is a reliable instrument for measuring and monitoring liquid and gas flows. Typical applications are sealing and cooling water, lubrication oil and gas flow measurements.

Technical data
Number of flow tubes  1 - 7 aluminium end blocks,
1 - 3 AISI 316 and nylon end blocks
Flow range, water (+20°C) Min. 0.4 - 2 l/min / Max. 5 - 30 l/min
Flow range, air (+20°C/1.013 bar abs) Min. 15 - 70 Nl/min / Max. 150 - 700 Nl/min
Flow tube Grilamid (PA-12), *PES
End blocks Aluminium, AISI 316 or Nylon
*Alarm sensor ILK-M12-FR (10 - 55 VDC, 2-wire, NO/NC), ILK-M12-N (Namur, DIN 19234)
