Kytola Instruments Oy

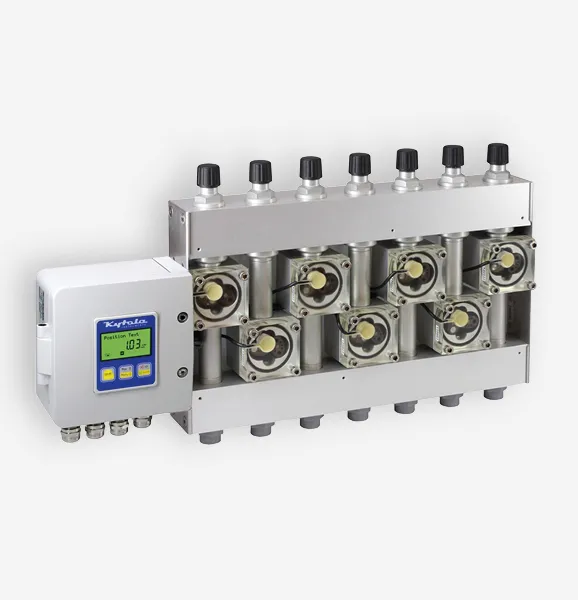

Model SRV - Upgrade block

Oval gear meter upgrade block SRV is designed and developed for lubrication oil measurement in demanding industrial environments. The SRV is optimized for upgrading the existing KYTOLA® model V variable area flow meter. The upgrade is easy and cost-effective since it does not require any changes to the existing piping.

The SRV Oval Gear Meter is a positive displacement meter, which always shows the correct flow rate regardless of oil temperature or viscosity changes.

Model SRV
Number of measuring points 1 – 7
End blocks, oval gear meter body Aluminium
Valves Aluminium, AISI 316
Gears Composite polymer
Cover Trogamid-T
Seals Viton®
Sensor Kytola coil or Namur sensor; DIN 19234
Connections Single tube model: NPT 1/2” or BSP 1/2”
Multi-tube models: Common inlet NPT 3/4” or BSP 3/4”, separate outlets NPT 1/2” or BSP 1/2”
