Kytola Instruments Oy

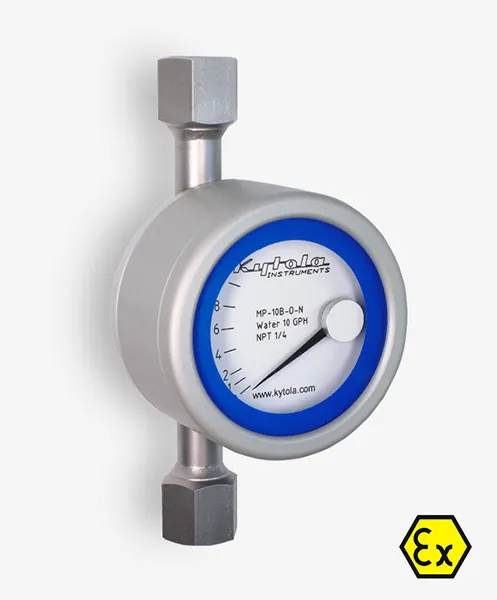

Metal Tube Flow meter Model MP-O

Metal Tube flow meter model MP is a compact flow meter with AISI 316L stainless steel parts. It is designed to withstand high pressure, temperature and aggressive media. It is compatible for a wide range of liquids or gases. Its reliable and accurate flow measurement is based on a variable area metering principle using a free-floating float. Typical applications are chemical and petrochemical industries, power plants and general flow measurements.

Technical data
Flow tube     Stainless Steel AISI 316L
Connectors Stainless Steel AISI 316L
Float Stainless Steel AISI 316L
Display housing Aluminium (*Stainless Steel AISI 316L)
Housing window Polycarbonate (*Borosilicate glass)
Maximum pressure  235 bar
Maximum temperature   +100°C with alarms / +150°C without alarms
Connections BSP / NPT / BSPT 1/4"" or 1/2"" (depending on range)
Weight   700g
