Adjustable Cartridge Relief Valves

Adjustable Cartridge Relief Valves

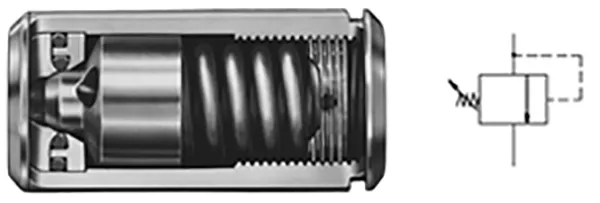

The Kepsel® cartridge has the same internal features as its counterpart Kep-O-seal® adjustable inline relief valve. These adjustable, spring-loaded poppet valves are used to limit system pressure. Excess pressure unseats the poppet, allowing flow with minimal increase in system pressure. As fluid is released the system pressure decreases until the spring force re-seats the poppet. Kepner's Flexible Seal Seat™ ensures bubble-tight shutoff of liquid or gas. The relief pressure can be set using a tamperproof internal adjustment screw. Standard and specialty valves handle a wide variety of relief applications, and are ideal for use in a manifold, sub-plate, or cylinder head.

Features and Benefits:

• Flexible Seal Seat™ for zero leak (bubble-tight) seal
• No threaded connections (avoid potential leakage)
• Both O-Ring seals positively secured
• Wide relief adjustment range 50 to 2000 PSI (3.45 to 138 bar)
• Tamperproof Nylok® adjustment set relief pressure/prevent slippage
• Poppet stop inside valve body prevents spring from bottoming out
• Compact, easy installation – Accessory Kepner Holding Device Kits available

Standard Valve Specifications:

• See Applications for selection/ limitation notes about O-Ring and Valve materials
• Size: 1 inch cavity (25.4 mm)
• Body Materials: Steel, 303 Stainless Steel
• O-Ring Seals: Teflon®, other materials available
• Temperature: -300°F to 450°F (-184°C to 232°C), O-Ring dependent
• Crack Pressure Ranges: Adjustable 50 to 2000 PSI (3.5 to 138 bar)
  • 3 Spring Ranges: 50 to 400 PSI (3.5 to 28 bar), 300 to 1000 PSI (21 to 69 bar), 900 to 2000 PSI (62 to 138 bar);  factory preset pressure available
• Operating Pressure: to 3000 PSI (207 bar)
• Flow: to 10 GPM (38 LPM)
