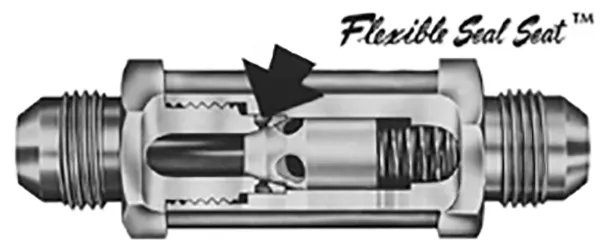

Inline Check and Relief-Check Valves

Inline Check and Relief-Check Valves

Features and Benefits:

• O-Ring seal positively secured
• Non-pressurized threads
• Poppet stop inside valve body prevents spring from bottoming out
• Generous flow passages allow full flow with minimal pressure drop

Standard Valve Specifications:

• End Connections: Pipe or Tube (NPT, JIC; 12 combinations)
• Port Sizes: 1/8 inch to 3 inch (3.2 mm to 76 mm)
• Body Materials: Aluminum, Brass, Steel, 303 or 316 Stainless Steel
• O-Ring Seals: Buna-N, Neoprene, Viton®, EP, others available
• Temperature: -300°F to 450°F (-184°C to 232°C), O-Ring dependent
• Check Crack Pressure: 1 to 2 PSI (.07 bar to .14 bar)
• Relief/Check Crack Pressures: 5 PSI (.35 bar), 10 PSI (0.7 bar), 25 PSI (1.7 bar), 50 PSI (3.5 bar) and 65 PSI (4.5 bar), others available
• Operating Pressure: to 3000 PSI (207 bar)
• Flow: to 500 GPM (1893 LPM)
